Product Description

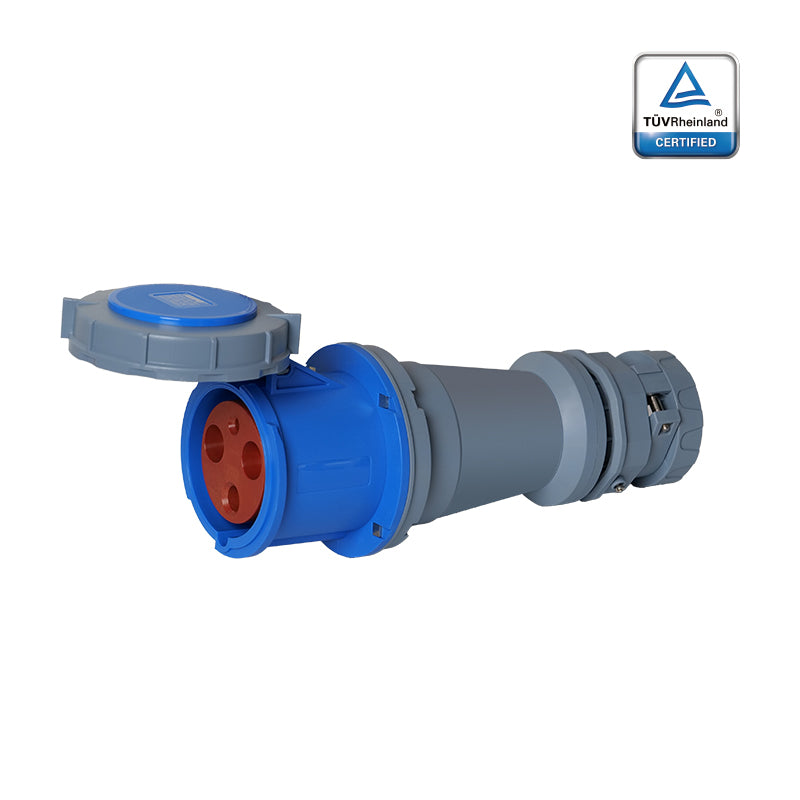

The KUPO K2432A is a 125A CEE form inline female connector for 220-250 V single-phase industrial and temporary power. Built to IEC 60309-1/2:2021 and GB/T11918.1/2-2014, it combines a 2P+E, 3-pole layout, 6h keyed earth position, screw terminals, brass contacts with a natural copper finish, and IP67 dust-tight and water-resistant protection for harsher outdoor or washdown environments. The housing uses flame-retardant nylon (PA) + PC, glow-wire 650 °C for dependable connection work on job sites, factory floors, event power systems, and other demanding installations.
Key Features
- 125A inline female connector for 220-250 V systems with 2P+E, 3-pole configuration.
- 6h keyed earth position helps prevent mating with incompatible voltage systems.
- IP67 protection helps keep dust out and withstand temporary immersion during demanding site conditions.
- Screw terminals support straightforward field wiring for 16 - 50 mm² conductors and Ø 25 - 47.5 mm cable entry.
- Brass contacts with a natural copper finish provide a durable current path for repeated industrial use.
- Flame-retardant nylon (PA) + PC, glow-wire 650 °C housing supports impact resistance, insulation, and flame-retardant performance.
- Blue + grey housing with rust red insert makes the connector easy to identify in a power distribution setup.
- Compatible KUPO counterparts listed for this model: K0432, K0432A.
Certifications & Standards
- Manufactured according to IEC 60309-1/2:2021 and GB/T11918.1/2-2014 for CEE form industrial connectors.
- Product data lists TUV, CB, CE certifications and RoHS environmental compliance.
- Rated for AC 2500 V withstand voltage, high insulation resistance, and more than 48 hours of salt-spray resistance.
- Operating temperature range: -25 °C to 125 °C.
Applications
- Temporary and permanent single-phase power distribution on construction sites, workshops, and factory floors
- Cable assemblies, extension leads, portable equipment, and site distribution boxes
- High-current distribution, main site feeds, generator tie-ins, and larger industrial equipment
- Ports, airports, drainage and wastewater projects, and other industrial environments
- Entertainment, live event production, and commercial power distribution where CEE compatibility is required
Compatibility
The KUPO K2432A is made to IEC 60309 dimensional standards and mates with the listed KUPO compatible products: K0432, K0432A. For safe connection, the mating device should match the 125A, 220-250 V, 2P+E, 3-pole, IP67, and 6h clock-position ratings shown in the product data.
| Use with | CEE Form connectors or receptacles with the same amperage, voltage class, pole configuration, IP rating, and earth-contact clock position. |
|---|---|
| Verify before ordering | Amperage, voltage color, pole count, clock position, IP rating, cable diameter, and terminal size. |
| Do not use with | CEE connectors with different current ratings, different voltage classes, non-matching pole configurations, or a different earth-contact clock position. |
Voltage Color Convention
Blue identifies the 200-250V CEE voltage class, matching this product rating. The keyed clock position of the earth contact helps prevent cross-mating between incompatible systems, so always confirm amperage, voltage, pole configuration, IP rating, and clock position before installation.
Frequently Asked Questions
What is the KUPO K2432A and what are its primary specifications?
The KUPO K2432A is a 125A CEE form female plug for 220-250V power distribution. Primary specifications: Product type: female plug, 125 A; Rated voltage: 220-250 V; Rated current: 125 A; Earth Contact Position: 6h; Poles: 2P+E, 3-pole; Protection grade: IP67; Withstand voltage: AC 2500 V; Insulation resistance: 500 V DC 1 min > 5 MΩ. For K2432A, the important distinction is that it is a female plug in the 125A, 220-250V, 2P+E, 3-pole, IP67, 6h earth position configuration, so it should be selected for that exact CEE form arrangement rather than a nearby SKU with a different pole count, IP grade, or mounting style.
What safety and compliance standards does the K2432A support?
Certifications listed in product data table: TUV, CB, CE Certification marks shown on PDF: TUV Rheinland Certified, CB, CE Environmental compliance: RoHS; non-RoHS optional Standards referenced: IEC 60309-1/2:2021; GB/T11918.1/2-2014 Withstand voltage: AC 2500 V Insulation resistance: 500 V DC 1 min > 5 MΩ Certification: TUV, CB, CE Salt spray resistance: > 48 h, no rust Impact test: -25 °C, 16 h, > 0.5 kg, 25°. For K2432A documentation, keep the matching K2432A product data sheet with the job file because the certification, withstand-voltage, and insulation-resistance values apply to this specific 125A IP67 female plug variant.
What cable and termination details are listed for the K2432A?
Terminal type: Screw terminal; Cable entry diameter range: Ø 25 - 47.5 mm; Cable nominal cross-section area: 16 - 50 mm²; Terminal type: Screw terminal. For K2432A, size the cable and gland around the listed cable entry range Ø 25 - 47.5 mm; conductor cross-section 16 - 50 mm²; terminal type Screw terminal; using the cable assumptions from a larger or smaller KUPO CEE SKU can lead to poor strain relief or an incorrect termination.
Which product is compatible with the K2432A?
The product data lists K0432, K0432A as compatible with K2432A. For safe mating, the connected product should match the electrical rating, pole configuration, IP rating, and earth contact clock position. For K2432A, compatibility with K0432, K0432A depends on the same 125A, 220-250V, 2P+E, 3-pole, IP67, 6h earth position; a connector with a different current rating, voltage color class, pole layout, IP grade, or clock position should not be treated as interchangeable.
Where is the K2432A typically used?
Designed and manufactured according to IEC 60309-1/2:2021 and GB/T11918.1/2-2014 for factory power distribution, machinery, construction sites, chemical plants, ports, airports, drainage and wastewater projects. Because K2432A is a 125A IP67 female plug for 220-250V, it fits installations that need that exact current capacity, mounting style, and environmental protection level; choose a different KUPO CEE SKU when the site requires another pole layout or ingress rating.
What dimensions are listed for the K2432A?
Side-view height shown in dimension drawing: 125 mm Overall length shown in side view: 325 mm Front-view outside diameter / width: 130 mm Cable entry diameter range: Ø 25 - 47.5 mm Cable nominal cross-section area: 16 - 50 mm². Use the K2432A dimensions, including overall length shown in side view 325 mm, for this exact body style when checking panel space, cable bend radius, cover swing, and service clearance; similar KUPO CEE products may not share the same envelope.
