Product Description

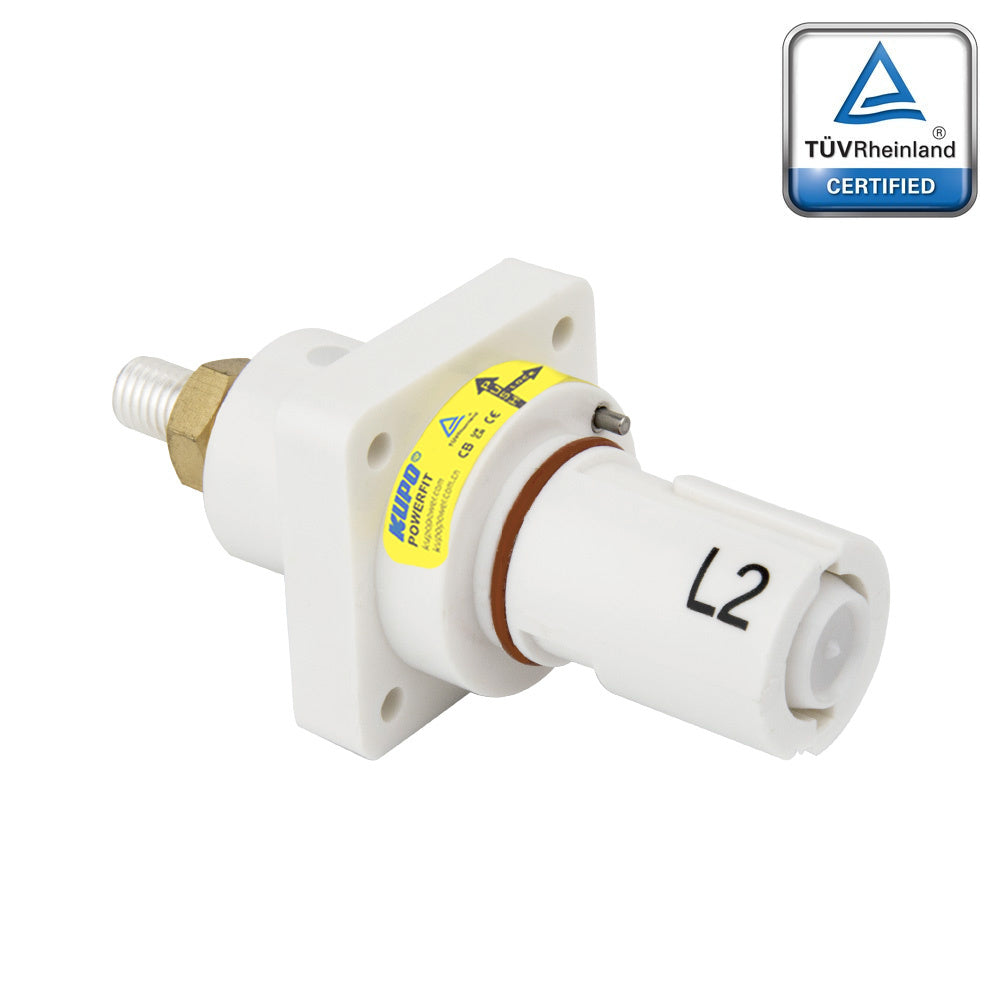

The PFPD-2W-T8 is an 800A PowerFit single-pole panel drain connector for high-current temporary and permanent power distribution. Its white housing identifies Line 2 (L2), while the m12 threaded post termination supports heavy cable or busbar-style integration depending on the connector format. Silver-plated copper contacts, high-impact thermoplastic insulation, IP67 protection when mated, and UL94-V0 body material make the connector suitable for demanding event, industrial, energy storage, and generator distribution environments.
Key Features
- Silver-plated contact ensures excellent conductivity
- Ergonomic rubber grip enhances handling comfort and safety
- Durable thermoplastic body offers superior impact resistance and electrical insulation
- O-ring provides an excellent protection against water and dust ingress after mating
Certifications & Standards
- TÜV certification listed on source spec sheet
- CE marking for European market compliance
- RoHS compliance restricts hazardous substances
- REACH compliance supports material traceability
- UL94-V0 flame rating for the connector body material
Applications
The PFPD-2W-T8 supports high-current power distribution where single-pole connectors must remain easy to identify, quick to mate, and protected against demanding site conditions. Typical uses include event power distribution, generator rental, industrial switchgear, battery energy storage systems, and other professional power systems that require durable 800A connectors.
Compatibility
This connector belongs to the KUPO PowerFit single-pole connector family. The push-and-twist interface, colour-coded housing, and listed electrical ratings make it suitable for PowerFit system layouts where mating connector type, conductor role, and project wiring convention are confirmed before installation.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208V 1 | Green / G-Y | ||||
| NA 277/480V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208V (NEMA / NEC) 2 North America 277/480V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
What is the PFPD-2W-T8 and what role does it play in a PowerFit system?
PFPD-2W-T8 is a KUPO PowerFit 800A panel drain connector with a white housing for Line 2 (L2). As a panel-mounted drain-side connector, it forms part of a single-pole high-current connection and is designed for IP67 protection when mated.
How much current and voltage can PFPD-2W-T8 handle?
PFPD-2W-T8 is rated for 800A Maximum. The voltage rating is 1000V AC/DC Maximum, with a 4500V AC test voltage, insulation resistance greater than 5000 megohms at 500V AC, and contact resistance of 0.1 milliohms.
What does the white housing on PFPD-2W-T8 identify?
The white housing identifies Line 2 (L2). The source spec sheet associates this colour with regional phase colour, so the colour should be checked against the project's wiring convention before installation.
How is PFPD-2W-T8 terminated and operated?
PFPD-2W-T8 uses m12 threaded post contact termination and a push-and-twist connection interface. The panel-mount body supports protected equipment interfaces and cabinet-mounted distribution points.
What certifications and environmental protections are listed for PFPD-2W-T8?
The spec sheet lists TÜV, CE, RoHS, and REACH compliance, IP67 rating while mated, UL94-V0 flammability rating for the body material, and a working temperature range of -25 to 125 degrees Celsius.
