Product Description

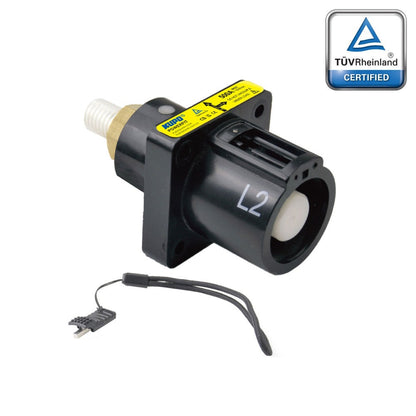

PFPS-2BK-T5 is a PowerFit 500A panel source connector with a black housing for Line 2. An M12 threaded post provides the termination, while the mating side uses a push-and-twist connection with a key-release mechanism. Silver-plated brass contacts and a non-conductive thermoplastic body provide the contact and insulation, with IP67 protection when mated.
Electrical ratings: 500A Maximum and 1000V AC/DC Maximum. IP67 protection applies when mated.
Key Features
- Panel mounting with M12 threaded post termination
- Key-release pin for disconnection
- Silver-plated brass contacts
- Non-conductive, high impact-resistant thermoplastic body
Termination and Connection
The panel connection terminates at an M12 threaded post. Nut torque: Maximum 12-14 N/meter. A key-release mechanism allows disconnection of the push-and-twist interface; the mating cycle rating is 500.
Certifications and Material Rating
TÜV, CE, RoHS and REACH compliant. The thermoplastic body has a UL94-V0 flammability rating.
Phase / Wire Color Convention
This black connector is designated for Line 2. Match the conductor marking and housing color to your installation's wiring convention.
Frequently Asked Questions
Which connector format is this?
This is the panel-mounted source format, with M12 threaded post termination and a key-release mechanism. Choose the line source format when you need double set screw cable termination.
What are its electrical ratings?
The current rating is 500A Maximum and the voltage rating is 1000V AC/DC Maximum. The test voltage is 4500V AC.
How is the cable or panel connection terminated?
The panel connection terminates at an M12 threaded post. Nut torque: Maximum 12-14 N/meter. A key-release mechanism allows disconnection of the push-and-twist interface; the mating cycle rating is 500.
Which conductor is this version for?
This black connector is designated for Line 2. Match the conductor marking and housing color to your installation's wiring convention.
When does IP67 protection apply?
IP67 protection applies when the connectors are mated. Working temperature: -25 to 125 Celsius Degree. The body material rating is UL94-V0.
