Product Description

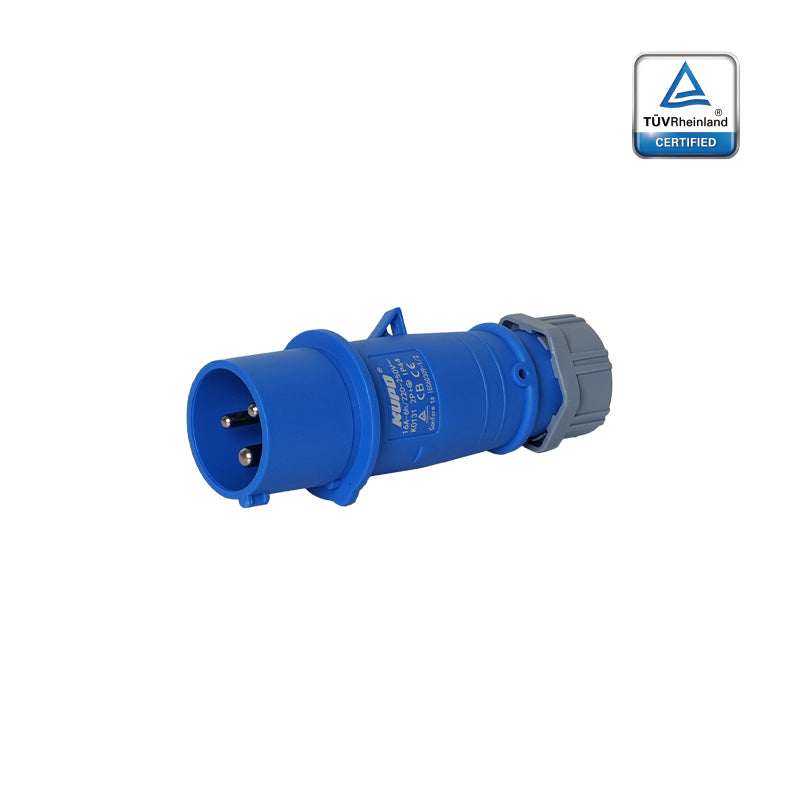

The KUPO K0131 is a 16A CEE form male plug for 220-250V single-phase power connections. Built to IEC 60309-1/2:2021 and GB/T11918.1/2-2014, it combines a 2P+E, 3-pole layout, keyed 6h earth contact position, screw terminal, flame-retardant nylon construction, and IP44 protection for splash-resistant industrial and job-site use. The blue and grey housing with rust-red insert follows the product color configuration shown in the KUPO data.
Key Features
- 16A male plug for 220-250V CEE form power connections
- 2P+E, 3-pole configuration with keyed 6h earth contact position
- IP44 protection for splash-resistant industrial and site use
- Screw terminal design for secure cable termination
- Flame-retardant nylon (PA) housing and brass contacts with natural copper finish
- Blue and grey housing with rust-red insert for quick product identification
- Compatible with KUPO K1132, K2132, K3132, K4132 and IEC 60309 CEE form connectors with matching ratings
- Operating temperature range from -25 °C to 125 °C
Certifications & Standards
- TUV, CB, and CE certifications are listed in the product data.
- Designed and manufactured according to IEC 60309-1/2:2021 and GB/T11918.1/2-2014.
- RoHS compliant, with non-RoHS option available.
- Tested for AC 2500 V withstand voltage and 500 V DC 1 min insulation resistance > 5 MΩ.
- Salt spray resistance > 48 h with no rust, plus low-temperature impact testing at -25 °C.
Applications
- Factory power distribution
- Machinery and industrial equipment connections
- Construction site temporary power
- Chemical plant power distribution
- Ports and airport electrical infrastructure
- Drainage and wastewater project installations
- Portable cable and extension assemblies requiring a 16A 2P+E, 3-pole male plug
Compatibility
The KUPO K0131 is manufactured to IEC 60309 dimensional standards and is compatible with KUPO K1132, K2132, K3132, K4132. For a correct mate, the connected device should share the same 16A rating, 220-250V voltage class, 2P+E, 3-pole configuration, IP44 protection requirement, and 6h earth contact clock position.
| Use with | CEE Form connectors or receptacles with the same amperage, voltage class, pole configuration, IP rating, and earth-contact clock position. |
|---|---|
| Verify before ordering | Amperage, voltage color, pole count, clock position, IP rating, cable diameter, and terminal size. |
| Do not use with | CEE connectors with different current ratings, different voltage classes, non-matching pole configurations, or a different earth-contact clock position. |
Voltage Color Convention
CEE form connectors use standardized housing colors to help identify voltage class. Blue identifies the 200-250V range used by this product class. The keyed clock position of the earth contact helps prevent cross-mating between incompatible voltage systems, so always verify amperage, voltage, pole configuration, and clock position before installation.
Frequently Asked Questions
What is the KUPO K0131 and what are its primary specifications?
The KUPO K0131 is a 16A CEE form male plug for 220-250V power distribution. Primary specifications: Product type: Male Plug, 16 A; Rated voltage: 220-250 V; Rated current: 16 A; Earth Contact Position: 6h; Poles: 2P+E, 3-pole; Protection grade: IP44; Withstand voltage: AC 2500 V; Insulation resistance: 500 V DC 1 min > 5 MΩ. For K0131, the important distinction is that it is a male plug in the 16A, 220-250V, 2P+E, 3-pole, IP44, 6h earth position configuration, so it should be selected for that exact CEE form arrangement rather than a nearby SKU with a different pole count, IP grade, or mounting style.
What safety and compliance standards does the K0131 support?
Certifications listed in product data table: TUV, CB, CE Certification marks shown on PDF: TÜV Rheinland Certified, CB, CE Environmental compliance: RoHS; non-RoHS optional Standards referenced: IEC 60309-1/2:2021; GB/T11918.1/2-2014 Withstand voltage: AC 2500 V Insulation resistance: 500 V DC 1 min > 5 MΩ Certification: TUV, CB, CE Salt spray resistance: > 48 h, no rust Impact test: -25 °C, 16 h, > 0.5 kg, 25°. For K0131 documentation, keep the matching K0131 product data sheet with the job file because the certification, withstand-voltage, and insulation-resistance values apply to this specific 16A IP44 male plug variant.
What cable and termination details are listed for the K0131?
Terminal type: Screw terminal; Cable entry diameter range: Ø 5.5 - 13.5 mm; Side-view overall height at rear / cable gland side: 60 mm; Cable nominal cross-section area: 1 - 2.5 mm²; Terminal type: Screw terminal. For K0131, size the cable and gland around the listed cable entry range Ø 5.5 - 13.5 mm; conductor cross-section 1 - 2.5 mm²; terminal type Screw terminal; using the cable assumptions from a larger or smaller KUPO CEE SKU can lead to poor strain relief or an incorrect termination.
Which product is compatible with the K0131?
The product data lists K1132, K2132, K3132, K4132 as compatible with K0131. For safe mating, the connected product should match the electrical rating, pole configuration, IP rating, and earth contact clock position. For K0131, compatibility with K1132, K2132, K3132, K4132 depends on the same 16A, 220-250V, 2P+E, 3-pole, IP44, 6h earth position; a connector with a different current rating, voltage color class, pole layout, IP grade, or clock position should not be treated as interchangeable.
Where is the K0131 typically used?
Designed and manufactured according to IEC 60309-1/2:2021 and GB/T11918.1/2-2014 for factory power distribution, machinery, construction sites, chemical plants, ports, airports, drainage and wastewater projects. Because K0131 is a 16A IP44 male plug for 220-250V, it fits installations that need that exact current capacity, mounting style, and environmental protection level; choose a different KUPO CEE SKU when the site requires another pole layout or ingress rating.
What dimensions are listed for the K0131?
Overall length shown in side view: 142 mm Body length shown in side view: 105 mm Rear body height shown in side view: 47 mm Front-view outside diameter / height: 47 mm Cable entry diameter range: Ø 5.5 - 13.5 mm Side-view overall height at rear / cable gland side: 60 mm Front-view contact layout: 3 contact positions shown, matching 2P+E / 3-pole configuration Cable nominal cross-section area: 1 - 2.5 mm². Use the K0131 dimensions, including overall length shown in side view 142 mm, body length shown in side view 105 mm, for this exact body style when checking panel space, cable bend radius, cover swing, and service clearance; similar KUPO CEE products may not share the same envelope.
