Product Description

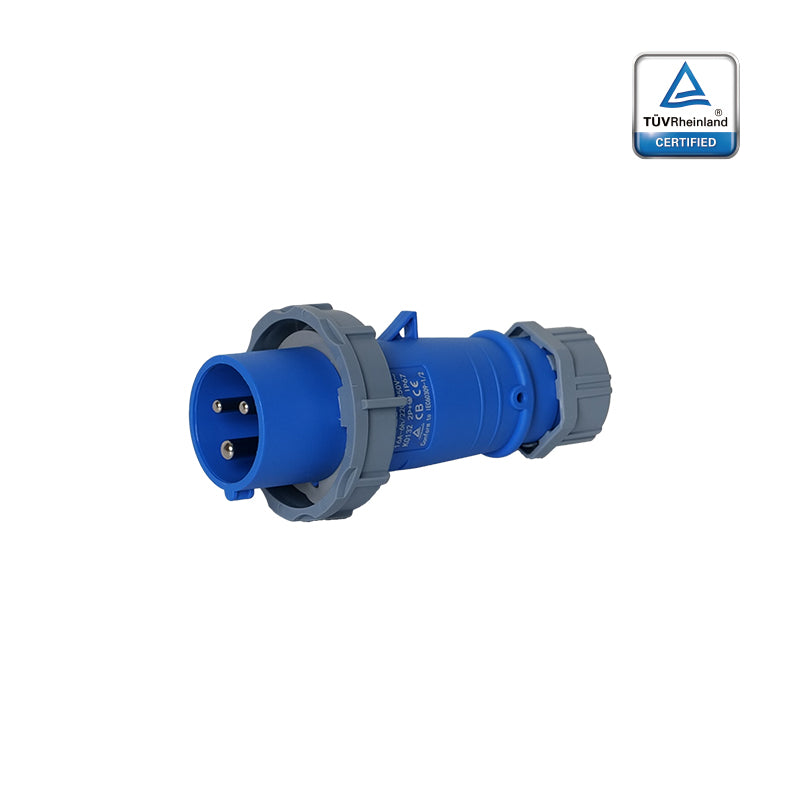

The KUPO K0132 is a 16A CEE form male plug for 220-250V single-phase power connections. Built to IEC 60309-1/2:2021 and GB/T 11918.1/2-2014, it combines a 2P+E, 3-pole layout, keyed 6h earth contact position, screw terminal, flame-retardant nylon construction, and IP67 protection for watertight service in outdoor, washdown, and demanding industrial environments. It has a blue and gray housing with a rust-red insert.
Key Features
- 16A male plug for 220-250V CEE form power connections
- 2P+E, 3-pole configuration with keyed 6h earth contact position
- Watertight IP67 protection for outdoor, washdown, and demanding industrial use
- Screw terminal design for secure cable termination
- Flame-retardant nylon (PA) housing and brass contacts with natural copper finish
- Blue and gray housing with rust-red insert for quick product identification
- Compatible with KUPO K1132, K2132, K3132, K4132 and IEC 60309 CEE form connectors with matching ratings
- Operating temperature range from -25 °C to 125 °C
Certifications & Standards
- TÜV, CB and CE certified.
- Designed and manufactured according to IEC 60309-1/2:2021 and GB/T 11918.1/2-2014.
- RoHS compliant, with non-RoHS option available.
- Tested for AC 2500 V withstand voltage and 500 V DC 1 min insulation resistance > 5 MΩ.
- Salt spray resistance > 48 h with no rust, plus low-temperature impact testing at -25 °C.
Applications
- Factory power distribution
- Machinery and industrial equipment connections
- Construction site temporary power
- Chemical plant power distribution
- Ports and airport electrical infrastructure
- Drainage and wastewater project installations
- Portable cable and extension assemblies requiring a 16A 2P+E, 3-pole male plug
Compatibility
The KUPO K0132 is manufactured to IEC 60309 dimensional standards and is compatible with KUPO K1132, K2132, K3132, K4132. For a correct mate, the connected device should share the same 16A rating, 220-250V voltage class, 2P+E, 3-pole configuration, IP67 protection requirement, and 6h earth contact clock position.
| Use with | CEE Form connectors or receptacles with the same amperage, voltage class, pole configuration, IP rating, and earth-contact clock position. |
|---|---|
| Verify before ordering | Amperage, voltage color, pole count, clock position, IP rating, cable diameter, and terminal size. |
| Do not use with | CEE connectors with different current ratings, different voltage classes, non-matching pole configurations, or a different earth-contact clock position. |
Voltage Color Convention
CEE form connectors use standardized housing colors to help identify voltage class. Blue identifies the 200-250V range used by this product class. The keyed clock position of the earth contact helps prevent cross-mating between incompatible voltage systems, so always verify amperage, voltage, pole configuration, and clock position before installation.
Frequently Asked Questions
What is the KUPO K0132 and what are its primary specifications?
The KUPO K0132 is a 16A CEE form male plug for 220 to 250 V power distribution. It is rated 16 A at 220 to 250 V, with a 2P+E, 3-pole configuration, a 6h earth contact position and IP67 protection. Withstand voltage is AC 2500 V, and insulation resistance is 500 V DC 1 min > 5 MΩ. Choose it for this exact combination of ratings, because nearby CEE form SKUs differ in pole count, IP rating or mounting style.
What safety and compliance standards does the K0132 support?
The K0132 is TÜV Rheinland, CB and CE certified and is designed and manufactured to IEC 60309-1/2:2021 and GB/T 11918.1/2-2014. It is RoHS compliant, with a non-RoHS option available. Test data: withstand voltage AC 2500 V; insulation resistance 500 V DC 1 min > 5 MΩ; salt spray resistance > 48 h, no rust; low-temperature impact test -25 °C, 16 h, > 0.5 kg, 25°.
What cable and termination details are listed for the K0132?
It uses a screw terminal. The cable entry accepts cable diameters of Ø 5.5 to 13.5 mm. Conductor cross-section is 1 to 2.5 mm². Size the cable and gland to these K0132 values. Cable choices made for a larger or smaller CEE form SKU can lead to poor strain relief or an incorrect termination.
Which product is compatible with the K0132?
The K0132 mates with KUPO K1132, K2132, K3132 and K4132. A safe mate needs a connector with the same ratings: 16A, 220 to 250 V, 2P+E, 3-pole, IP67 and 6h earth position. Never treat a connector with a different current rating, voltage color class, pole layout, IP rating or clock position as interchangeable.
Where is the K0132 typically used?
Typical uses include factory power distribution, machinery, construction sites, chemical plants, ports, airports, drainage and wastewater projects. As a 16A IP67 male plug for 220 to 250 V, it suits installations that need this exact current capacity, mounting style and protection level. Choose a different KUPO CEE form SKU when the site needs another pole layout or IP rating.
What dimensions are listed for the K0132?
Key K0132 dimensions: Overall length: 142 mm; Body length: 107 mm; Rear body height: 47 mm; Front outside diameter: 47 mm; Front outside width: 76 mm. Use these figures for this exact body style when checking panel space, cable bend radius, cover swing and service clearance, because similar CEE form products may differ. The full dimension drawing is in the K0132 spec sheet below.
