Product Description

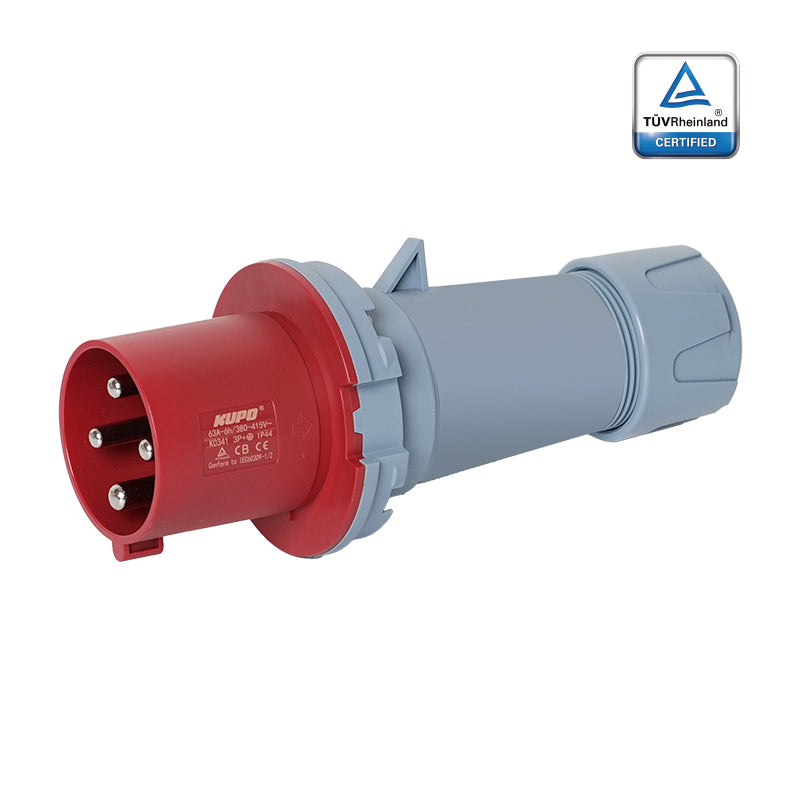

The KUPO K0341 is a 63A CEE form male plug for 380-415V three-phase power connections. Built to IEC 60309-1/2:2021 and GB/T11918.1/2-2014, it combines a 3P+E, 4-pole layout, keyed 6h earth contact position, screw terminal, flame-retardant nylon construction, and IP44 protection for splash-resistant industrial and job-site use. The red and grey housing with rust-red insert follows the product color configuration shown in the KUPO data.
Key Features
- 63A male plug for 380-415V CEE form power connections
- 3P+E, 4-pole configuration with keyed 6h earth contact position
- IP44 protection for splash-resistant industrial and site use
- Screw terminal design for secure cable termination
- Flame-retardant nylon (PA) housing and brass contacts with natural copper finish
- Red and grey housing with rust-red insert for quick product identification
- Compatible with KUPO K1341, K2341, K3341, K4341 and IEC 60309 CEE form connectors with matching ratings
- Operating temperature range from -25 °C to 125 °C
Certifications & Standards
- TUV, CB, and CE certifications are listed in the product data.
- Designed and manufactured according to IEC 60309-1/2:2021 and GB/T11918.1/2-2014.
- RoHS compliant, with non-RoHS option available.
- Tested for AC 2500 V withstand voltage and 500 V DC 1 min insulation resistance > 5 MΩ.
- Salt spray resistance > 48 h with no rust, plus low-temperature impact testing at -25 °C.
Applications
- Factory power distribution
- Machinery and industrial equipment connections
- Construction site temporary power
- Chemical plant power distribution
- Ports and airport electrical infrastructure
- Drainage and wastewater project installations
- Portable cable and extension assemblies requiring a 63A 3P+E, 4-pole male plug
Compatibility
The KUPO K0341 is manufactured to IEC 60309 dimensional standards and is compatible with KUPO K1341, K2341, K3341, K4341. For a correct mate, the connected device should share the same 63A rating, 380-415V voltage class, 3P+E, 4-pole configuration, IP44 protection requirement, and 6h earth contact clock position.
| Use with | CEE Form connectors or receptacles with the same amperage, voltage class, pole configuration, IP rating, and earth-contact clock position. |
|---|---|
| Verify before ordering | Amperage, voltage color, pole count, clock position, IP rating, cable diameter, and terminal size. |
| Do not use with | CEE connectors with different current ratings, different voltage classes, non-matching pole configurations, or a different earth-contact clock position. |
Voltage Color Convention
CEE form connectors use standardized housing colors to help identify voltage class. Red identifies the higher-voltage three-phase CEE form family used by this product class. The keyed clock position of the earth contact helps prevent cross-mating between incompatible voltage systems, so always verify amperage, voltage, pole configuration, and clock position before installation.
Frequently Asked Questions
What is the KUPO K0341 and what are its primary specifications?
The KUPO K0341 is a 63A CEE form male plug for 380-415V power distribution. Primary specifications: Product type: Male Plug, 63 A; Rated voltage: 380-415 V; Rated current: 63 A; Earth Contact Position: 6h; Poles: 3P+E, 4-pole; Protection grade: IP44; Withstand voltage: AC 2500 V; Insulation resistance: 500 V DC 1 min > 5 MΩ. For K0341, the important distinction is that it is a male plug in the 63A, 380-415V, 3P+E, 4-pole, IP44, 6h earth position configuration, so it should be selected for that exact CEE form arrangement rather than a nearby SKU with a different pole count, IP grade, or mounting style.
What safety and compliance standards does the K0341 support?
TUV, CB, CE; RoHS with non-RoHS optional; IEC 60309-1/2:2021 and GB/T11918.1/2-2014. Withstand voltage: AC 2500 V Insulation resistance: 500 V DC 1 min > 5 MΩ Salt spray resistance: > 48 h, no rust Impact test: -25 °C, 16 h, > 0.5 kg, 25°. For K0341 documentation, keep the matching K0341 product data sheet with the job file because the certification, withstand-voltage, and insulation-resistance values apply to this specific 63A IP44 male plug variant.
What cable and termination details are listed for the K0341?
screw terminal. Housing color: red + grey. Insert color: rust red.; cable entry Ø 16 - 34 mm; cable nominal cross-section area 6 - 16 mm².; Terminal type: Screw terminal. For K0341, size the cable and gland around the listed terminal type Screw terminal.; using the cable assumptions from a larger or smaller KUPO CEE SKU can lead to poor strain relief or an incorrect termination.
Which product is compatible with the K0341?
The product data lists K1341, K2341, K3341, K4341 as compatible with K0341. For safe mating, the connected product should match the electrical rating, pole configuration, IP rating, and earth contact clock position. For K0341, compatibility with K1341, K2341, K3341, K4341 depends on the same 63A, 380-415V, 3P+E, 4-pole, IP44, 6h earth position; a connector with a different current rating, voltage color class, pole layout, IP grade, or clock position should not be treated as interchangeable.
Where is the K0341 typically used?
Designed and manufactured according to IEC 60309-1/2:2021 and GB/T11918.1/2-2014 for factory power distribution, machinery, construction sites, chemical plants, ports, airports, drainage and wastewater projects. Because K0341 is a 63A IP44 male plug for 380-415V, it fits installations that need that exact current capacity, mounting style, and environmental protection level; choose a different KUPO CEE SKU when the site requires another pole layout or ingress rating.
What dimensions are listed for the K0341?
Rendered dimension drawing checked. Overall length 239 mm body length 170 mm side/front height 77 mm front-view outside width 102 mm cable entry Ø 16 - 34 mm 4-contact layout for 3P+E cable nominal cross-section area 6 - 16 mm². Use the K0341 dimensions for this exact body style when checking panel space, cable bend radius, cover swing, and service clearance; similar KUPO CEE products may not share the same envelope.
