Product Description

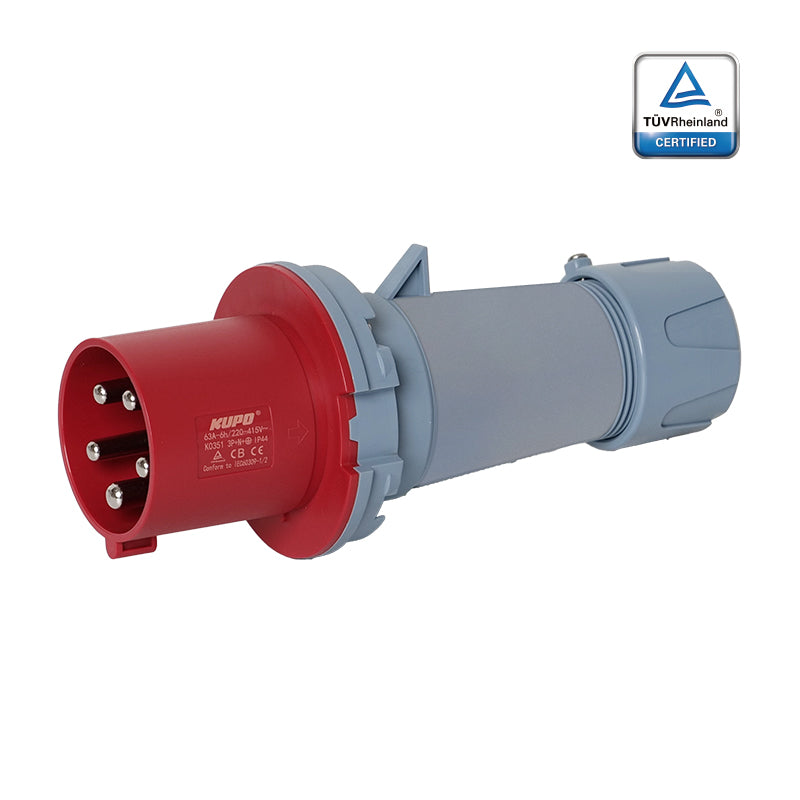

The KUPO K0351 is a 63A CEE form male plug for 220-415V three-phase plus neutral power connections. Built to IEC 60309-1/2:2021 and GB/T 11918.1/2-2014, it combines a 3P+N+E, 5-pole layout, keyed 6h earth contact position, screw terminal, flame-retardant nylon construction, and IP44 protection for splash-resistant industrial and job-site use. It has a red and gray housing with a rust-red insert.
Key Features
- 63A male plug for 220-415V CEE form power connections
- 3P+N+E, 5-pole configuration with keyed 6h earth contact position
- IP44 protection for splash-resistant industrial and site use
- Screw terminal design for secure cable termination
- Flame-retardant nylon (PA) housing and brass contacts with natural copper finish
- Red and gray housing with rust-red insert for quick product identification
- Compatible with KUPO K1351, K2351, K3351, K4351 and IEC 60309 CEE form connectors with matching ratings
- Operating temperature range from -25 °C to 125 °C
Certifications & Standards
- TÜV, CB and CE certified.
- Designed and manufactured according to IEC 60309-1/2:2021 and GB/T 11918.1/2-2014.
- RoHS compliant, with non-RoHS option available.
- Tested for AC 2500 V withstand voltage and 500 V DC 1 min insulation resistance > 5 MΩ.
- Salt spray resistance > 48 h with no rust, plus low-temperature impact testing at -25 °C.
Applications
- Factory power distribution
- Machinery and industrial equipment connections
- Construction site temporary power
- Chemical plant power distribution
- Ports and airport electrical infrastructure
- Drainage and wastewater project installations
- Portable cable and extension assemblies requiring a 63A 3P+N+E, 5-pole male plug
Compatibility
The KUPO K0351 is manufactured to IEC 60309 dimensional standards and is compatible with KUPO K1351, K2351, K3351, K4351. For a correct mate, the connected device should share the same 63A rating, 220-415V voltage class, 3P+N+E, 5-pole configuration, IP44 protection requirement, and 6h earth contact clock position.
| Use with | CEE Form connectors or receptacles with the same amperage, voltage class, pole configuration, IP rating, and earth-contact clock position. |
|---|---|
| Verify before ordering | Amperage, voltage color, pole count, clock position, IP rating, cable diameter, and terminal size. |
| Do not use with | CEE connectors with different current ratings, different voltage classes, non-matching pole configurations, or a different earth-contact clock position. |
Voltage Color Convention
CEE form connectors use standardized housing colors to help identify voltage class. Red identifies the higher-voltage three-phase CEE form family used by this product class. The keyed clock position of the earth contact helps prevent cross-mating between incompatible voltage systems, so always verify amperage, voltage, pole configuration, and clock position before installation.
Frequently Asked Questions
What is the KUPO K0351 and what are its primary specifications?
The KUPO K0351 is a 63A CEE form male plug for 220 to 415 V power distribution. It is rated 63 A at 220 to 415 V, with a 3P+N+E, 5-pole configuration, a 6h earth contact position and IP44 protection. Withstand voltage is AC 2500 V, and insulation resistance is 500 V DC 1 min > 5 MΩ. Choose it for this exact combination of ratings, because nearby CEE form SKUs differ in pole count, IP rating or mounting style.
What safety and compliance standards does the K0351 support?
The K0351 is TÜV, CB and CE certified and is designed and manufactured to IEC 60309-1/2:2021 and GB/T 11918.1/2-2014. It is RoHS compliant, with a non-RoHS option available. Test data: withstand voltage AC 2500 V; insulation resistance 500 V DC 1 min > 5 MΩ; salt spray resistance > 48 h, no rust; low-temperature impact test -25 °C, 16 h, > 0.5 kg, 25°.
What cable and termination details are listed for the K0351?
It uses a screw terminal. Size the cable and gland to these K0351 values. Cable choices made for a larger or smaller CEE form SKU can lead to poor strain relief or an incorrect termination.
Which product is compatible with the K0351?
The K0351 mates with KUPO K1351, K2351, K3351 and K4351. A safe mate needs a connector with the same ratings: 63A, 220 to 415 V, 3P+N+E, 5-pole, IP44 and 6h earth position. Never treat a connector with a different current rating, voltage color class, pole layout, IP rating or clock position as interchangeable.
Where is the K0351 typically used?
Typical uses include factory power distribution, machinery, construction sites, chemical plants, ports, airports, drainage and wastewater projects. As a 63A IP44 male plug for 220 to 415 V, it suits installations that need this exact current capacity, mounting style and protection level. Choose a different KUPO CEE form SKU when the site needs another pole layout or IP rating.
What dimensions are listed for the K0351?
The full K0351 dimension drawing is in the spec sheet below. Use it for this exact body style when checking panel space, cable bend radius, cover swing and service clearance, because similar CEE form products may differ.
