Product Description

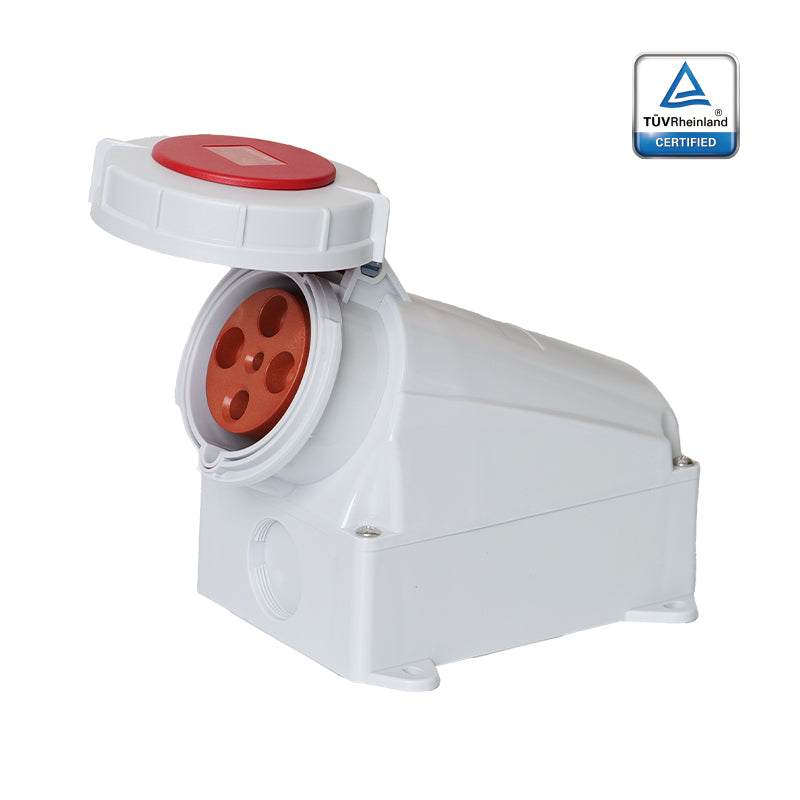

Built to IEC 60309-1/2:2021 and GB/T 11918.1/2-2014 standards, the KUPO K1342 is a 63A CEE form waterproof surface-mounted female socket for fixed industrial power points. It combines a 380-415V rating, 3P+E layout, keyed 6h earth contact position, hinged cover, screw terminals, brass contacts, and IP67 protection for reliable power distribution in outdoor, wet, and high-demand work environments.
Key Features
- 63A waterproof surface-mounted female socket with hinged cover for fixed wall or equipment-mounted CEE outlets
- 380-415V rating with 3P+E, 4-pole configuration and keyed 6h earth contact position for correct IEC 60309 mating
- IP67 watertight and dust-tight protection for outdoor, wet, and demanding industrial locations
- Screw terminal design supports secure cable termination during installation
- Flame-retardant nylon (PA) + PC housing with 650 °C glow-wire rating and rust red contact carrier for durable insulation
- Brass contacts with natural copper finish help maintain a stable, low-resistance connection
- Red + white housing follows IEC 60309 color coding for quick voltage-class identification
- Rated operating temperature range from -25 °C to 125 °C
- Compatible with KUPO K0341, and K0342 when current, voltage, pole configuration, IP rating, and clock position match
Certifications & Standards
- TÜV, CB and CE certified
- Designed and manufactured according to IEC 60309-1/2:2021
- Designed and manufactured according to GB/T 11918.1/2-2014
- RoHS compliant, with non-RoHS option available
- Withstand voltage: AC 2500 V
- Insulation resistance: 500 V DC 1 min > 5 MΩ
- Salt spray resistance: > 48 h, no rust
- Impact test: -25 °C, 16 h, > 0.5 kg, 25°
Applications
- Factory power distribution and machinery installations
- Construction site temporary and fixed power points
- Chemical plant, port, and airport electrical infrastructure
- Drainage and wastewater project installations
- Wall-mounted or equipment-mounted CEE outlets requiring a 63A 3P+E female socket
Compatibility
The KUPO K1342 is manufactured to IEC 60309 dimensional standards and is compatible with KUPO K0341, and K0342. For a proper connection, pair it only with devices that match the 63A current rating, 380-415V voltage class, 3P+E, 4-pole configuration, IP67 protection requirement, and 6h earth contact clock position.
| Use with | CEE Form connectors or receptacles with the same amperage, voltage class, pole configuration, IP rating, and earth-contact clock position. |
|---|---|
| Verify before ordering | Amperage, voltage color, pole count, clock position, IP rating, cable diameter, and terminal size. |
| Do not use with | CEE connectors with different current ratings, different voltage classes, non-matching pole configurations, or a different earth-contact clock position. |
Voltage Color Convention
CEE form connectors use standardized housing colors to indicate voltage class. Red identifies the 380-480V IEC 60309 voltage class, matching the 380-415V rating on this model. The keyed clock position of the earth contact helps prevent cross-mating between incompatible systems, so always verify amperage, voltage, pole configuration, and clock position before installation.
Frequently Asked Questions
What is the KUPO K1342 and what are its primary specifications?
The KUPO K1342 is a 63A CEE form waterproof surface-mounted female socket with hinged cover for 380 to 415 V power distribution. It is rated 63 A at 380 to 415 V, with a 3P+E, 4-pole configuration, a 6h earth contact position and IP67 protection. Withstand voltage is AC 2500 V, and insulation resistance is 500 V DC 1 min > 5 MΩ. Choose it for this exact combination of ratings, because nearby CEE form SKUs differ in pole count, IP rating or mounting style.
What safety and compliance standards does the K1342 support?
The K1342 is TÜV Rheinland, CB and CE certified and is designed and manufactured to IEC 60309-1/2:2021 and GB/T 11918.1/2-2014. It is RoHS compliant, with a non-RoHS option available. Test data: withstand voltage AC 2500 V; insulation resistance 500 V DC 1 min > 5 MΩ; salt spray resistance > 48 h, no rust; low-temperature impact test -25 °C, 16 h, > 0.5 kg, 25°.
What cable and termination details are listed for the K1342?
It uses a screw terminal. The cable entry accepts cable diameters of Ø 22 to 32 mm. Conductor cross-section is 6 to 16 mm². Size the cable and gland to these K1342 values. Cable choices made for a larger or smaller CEE form SKU can lead to poor strain relief or an incorrect termination.
Which product is compatible with the K1342?
The K1342 mates with KUPO K0341 and K0342. A safe mate needs a connector with the same ratings: 63A, 380 to 415 V, 3P+E, 4-pole, IP67 and 6h earth position. Never treat a connector with a different current rating, voltage color class, pole layout, IP rating or clock position as interchangeable.
Where is the K1342 typically used?
Typical uses include factory power distribution, machinery, construction sites, chemical plants, ports, airports, drainage and wastewater projects. As a 63A IP67 waterproof surface-mounted female socket with hinged cover for 380 to 415 V, it suits installations that need this exact current capacity, mounting style and protection level. Choose a different KUPO CEE form SKU when the site needs another pole layout or IP rating.
What dimensions are listed for the K1342?
The full K1342 dimension drawing is in the spec sheet below. Use it for this exact body style when checking panel space, cable bend radius, cover swing and service clearance, because similar CEE form products may differ.
