Product Description

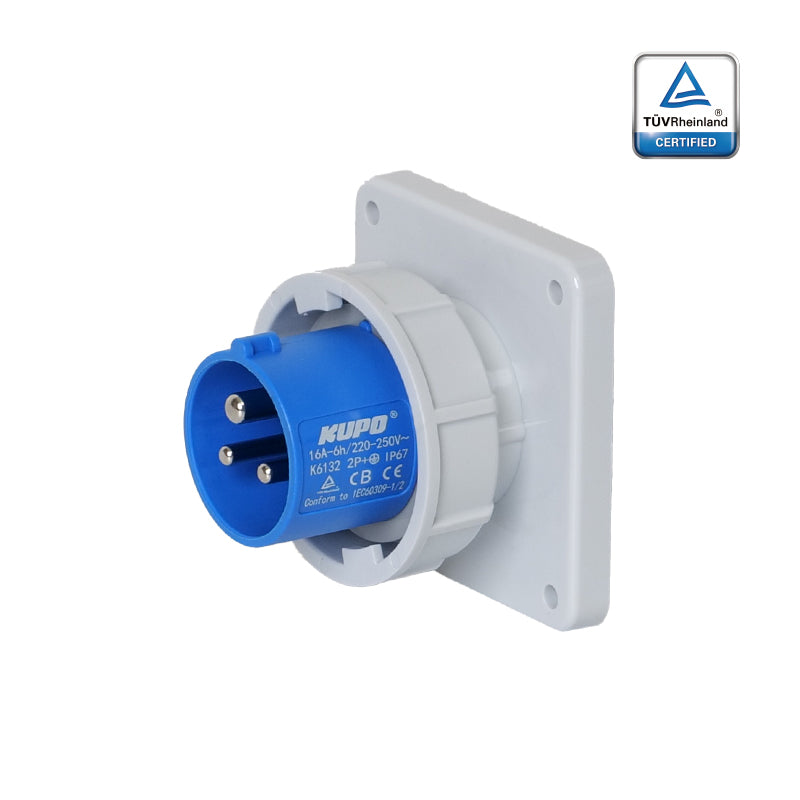

The KUPO K6132 is a 16 A CEE form appliance male inlet for bringing 220-250 V power into equipment, panels, and distribution assemblies. Built around a 2P+E, 3-pole configuration with a 6h keyed earth position, it gives installers a clear, standardized connection point while helping prevent mismating with incompatible CEE systems. Its watertight IP67 housing pairs screw terminals, brass contacts, and flame-retardant nylon (PA) + PC with 650 degrees Celsius glow-wire performance, making it a practical choice for wet and exposed industrial environments.
Key Features
- 16 A appliance male inlet for 220-250 V CEE form power entry.
- 2P+E, 3-pole configuration with a 6h keyed earth position to support correct mating in IEC 60309 systems.
- IP67 dust-tight and watertight protection supports outdoor, washdown, and other wet industrial locations.
- A screw-terminal layout supports secure field wiring during panel and equipment assembly.
- Brass contacts with a natural copper finish provide dependable electrical contact.
- Flame-retardant nylon (PA) + PC housing with 650 degrees Celsius glow-wire performance; operating temperature range: -25 degrees Celsius to 125 degrees Celsius.
- Blue + white housing with rust red insert follows the IEC color convention for faster visual identification.
Certifications & Standards
- Certifications: TÜV, CB and CE.
- Designed and manufactured to IEC 60309-1/2:2021 and GB/T 11918.1/2-2014 for industrial plugs, socket-outlets, and couplers.
- RoHS environmental compliance is listed, with non-RoHS versions optional where required.
- Tested for AC 2500 V withstand voltage, 500 V DC 1 min > 5 MΩ insulation resistance, > 48 h salt-spray resistance, and low-temperature impact testing.
Applications
- Equipment inlets, control panels, distribution boards, and switchgear assemblies.
- Temporary and permanent power distribution for construction sites, factories, and maintenance areas.
- Single-phase industrial and commercial power connections for workshops, machinery, and workstation power.
- Event, venue, and utility power setups where standardized CEE compatibility is required.
Compatibility
The KUPO K6132 mates with compatible KUPO products K1131, K1132, K2131, K2132, K3131, K3132, K4131, K4132. For a correct connection, match the connected device to the same ratings: 16A, 220-250V, 2P+E, 3-pole, IP67, 6h.
| Use with | CEE Form connectors or receptacles with the same amperage, voltage class, pole configuration, IP rating, and earth-contact clock position. |
|---|---|
| Verify before ordering | Amperage, voltage color, pole count, clock position, IP rating, cable diameter, and terminal size. |
| Do not use with | CEE connectors with different current ratings, different voltage classes, non-matching pole configurations, or a different earth-contact clock position. |
Voltage Color Convention
Blue identifies the 200-250V IEC voltage class used by this inlet. The keyed clock position of the earth contact helps prevent cross-mating between incompatible voltage systems, so always verify amperage, voltage, pole configuration, and clock position before installation.
Frequently Asked Questions
What is the KUPO K6132 and what are its primary specifications?
The KUPO K6132 is a 16A CEE form appliance male for 220 to 250 V power distribution. It is rated 16 A at 220 to 250 V, with a 2P+E, 3-pole configuration, a 6h earth contact position and IP67 protection. Withstand voltage is AC 2500 V, and insulation resistance is 500 V DC 1 min > 5 MΩ. Choose it for this exact combination of ratings, because nearby CEE form SKUs differ in pole count, IP rating or mounting style.
What safety and compliance standards does the K6132 support?
The K6132 is TÜV Rheinland, CB and CE certified and is designed and manufactured to IEC 60309-1/2:2021 and GB/T 11918.1/2-2014. It is RoHS compliant, with a non-RoHS option available. Test data: withstand voltage AC 2500 V; insulation resistance 500 V DC 1 min > 5 MΩ; salt spray resistance > 48 h, no rust; low-temperature impact test -25 °C, 16 h, > 0.5 kg, 25°.
What cable and termination details are listed for the K6132?
It uses a screw terminal. Conductor cross-section is 1 to 2.5 mm². Size the cable and gland to these K6132 values. Cable choices made for a larger or smaller CEE form SKU can lead to poor strain relief or an incorrect termination.
Which product is compatible with the K6132?
The K6132 mates with KUPO K1131, K1132, K2131, K2132, K3131, K3132, K4131 and K4132. A safe mate needs a connector with the same ratings: 16A, 220 to 250 V, 2P+E, 3-pole, IP67 and 6h earth position. Never treat a connector with a different current rating, voltage color class, pole layout, IP rating or clock position as interchangeable.
Where is the K6132 typically used?
Typical uses include factory power distribution, machinery, construction sites, chemical plants, ports, airports, drainage and wastewater projects. As a 16A IP67 appliance male for 220 to 250 V, it suits installations that need this exact current capacity, mounting style and protection level. Choose a different KUPO CEE form SKU when the site needs another pole layout or IP rating.
What dimensions are listed for the K6132?
Key K6132 dimensions: Front plate size: 87 × 87 mm; Mounting hole spacing: 71 × 71 mm; Front circular opening: Ø 47 mm; Mounting hole diameter: 5.5 mm; Depth: 69 mm; Overall height: 87 mm. Use these figures for this exact body style when checking panel space, cable bend radius, cover swing and service clearance, because similar CEE form products may differ. The full dimension drawing is in the K6132 spec sheet below.
