Product Description

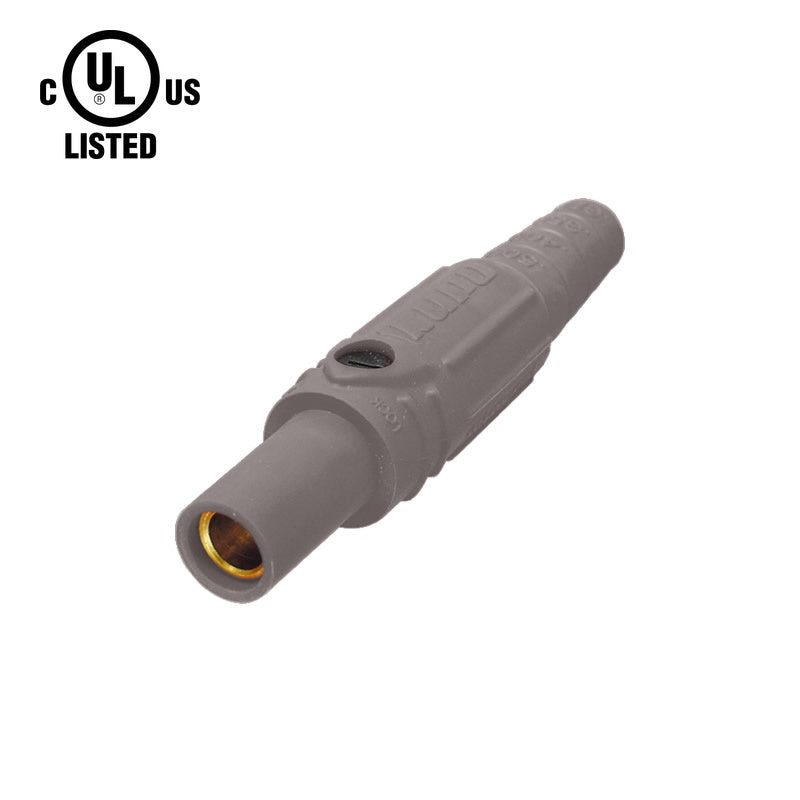

The KUPO K-LOK 150A Female Line Connector is engineered for heavy-duty reliability and safety in temporary power distribution. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius, brass contacts for superior conductivity, and a non-conductive POM (Polyoxymethylene) retaining screw that eliminates accidental current paths, this connector delivers the mechanical strength and electrical performance demanded by professional entertainment and industrial applications. The modular design enables rapid field assembly and disassembly, while full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution systems.
Key Features
- Non-conductive POM (Polyoxymethylene) retaining screw locks the brass contact firmly in position, eliminating accidental current paths for safer operation
- POM insulation sleeve adds heat resistance and structural strength to the contact assembly
- Ribbed Santoprene TPV housing provides a secure, slip-free grip even when wearing work gloves
- Alignment arrow ensures correct orientation for fast, error-free mating every time
- Santoprene TPV housing rated to 105 degrees Celsius withstands demanding site conditions and extreme temperatures
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 150A
- Double set screw termination provides redundant cable retention for maximum security under vibration and load
- Universal CAM-type compatibility integrates seamlessly with existing power infrastructure from multiple manufacturers
- cULus Listed for the United States and Canada (UL 1691 and CSA C22.2 No. 1691-12)
Certifications & Standards
- cULus Listed, UL File Number E332947
- Not for current interruption: connect and disconnect only when the circuit is de-energized.
- UL 1691 and CSA C22.2 No. 1691-12, Single Pole Locking-Type Separable Connectors
- Environment Rating: UL Enclosure Type 3R (when mated)
- Flame Class: HB / UL94
- RoHS (Restriction of Hazardous Substances) Compliant
Applications
- Concert touring and live event production
- Film, television, and studio power distribution
- Temporary construction site power
- Theme park and entertainment venue installations
- Trade shows and exhibition power systems
- Industrial temporary power connections
- Broadcast and outside broadcast (OB) van power
Compatibility
The K-LOK 150A Female In-Line Connector intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
Frequently Asked Questions
Who should use KL-150LFGY and why?
Lighting technicians, electricians, and power distribution professionals working with 150A temporary power systems will benefit from KL-150LFGY. Its gray housing provides instant visual phase identification, while the Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius ensures durability in demanding field conditions.
What voltage and amperage is KL-150LFGY rated for?
KL-150LFGY carries a maximum rating of 150A and 600V AC/DC. It accepts wire gauges from #8 to #2 AWG, making it suitable for the conductor sizes typically used in 150-amp power distribution circuits.
Why choose the gray version of the K-LOK 150A female line connector?
Gray represents Phase C (L3) under the IEC color code. In North America, gray is also permitted for the neutral conductor. Adding gray to the connector inventory ensures full IEC three-phase coverage alongside brown and black. Choosing KL-150LFGY in gray ensures your power distribution system follows established color conventions, speeding up setup and reducing wiring errors.
Is KL-150LFGY UL listed and what does that mean?
Yes. KL-150LFGY is cULus Listed under UL File Number E332947, meaning UL has independently tested and certified it to UL 1691 for the United States and CSA C22.2 No. 1691-12 for Canada. The listing covers both the United States and Canada.
What industries commonly use KL-150LFGY?
KL-150LFGY is used across live events and touring, film and broadcast, rental and staging inventories, and industrial temporary power. Its 150A / 600V AC/DC rating, combined with CAM-type universal compatibility and gray phase coding, makes it a versatile choice across the entertainment, construction, and industrial sectors.
How do you assemble KL-150LFGY in the field?
KL-150LFGY features a modular design that enables rapid assembly and disassembly on site. Strip the cable, insert it through the housing, secure it with the double set screw termination, and lock the brass contact in place with the non-conductive POM retaining screw. The alignment arrow ensures correct orientation every time.
