Product Description

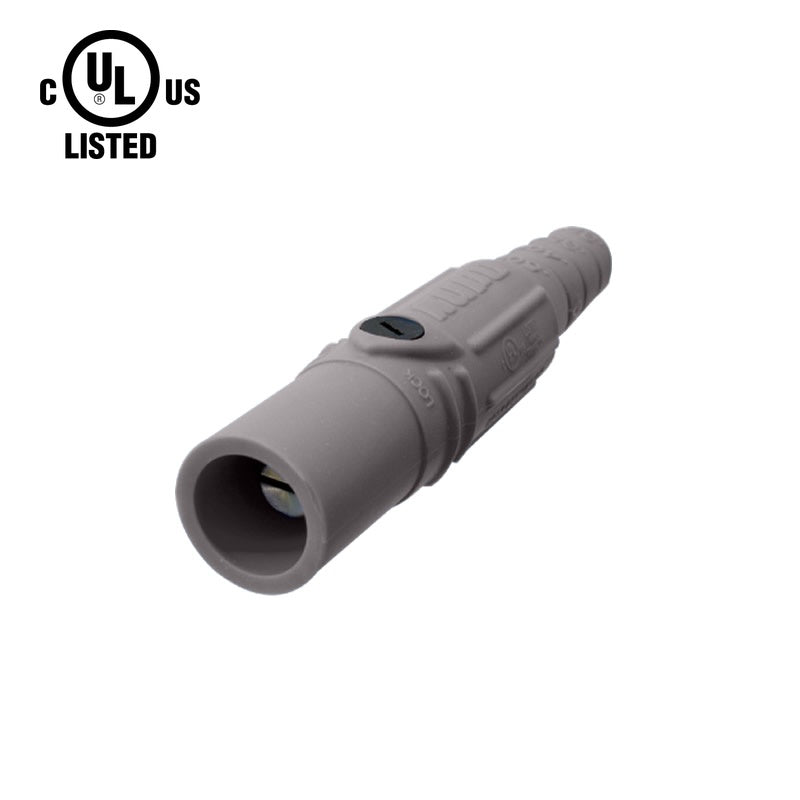

The KUPO K-LOK 150A Male Line Connector is engineered for heavy-duty reliability and safety in temporary power distribution. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius, brass contacts for superior conductivity, and a non-conductive POM (Polyoxymethylene) retaining screw that eliminates accidental current paths, this connector delivers the mechanical strength and electrical performance demanded by professional entertainment and industrial applications. The modular design enables rapid field assembly and disassembly, while full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution systems.
Key Features
- Non-conductive POM (Polyoxymethylene) retaining screw locks the brass contact firmly in position, eliminating accidental current paths for safer operation
- POM insulation sleeve adds heat resistance and structural strength to the contact assembly
- Ribbed Santoprene TPV housing provides a secure, slip-free grip even when wearing work gloves
- Alignment arrow ensures correct orientation for fast, error-free mating every time
- Santoprene TPV housing rated to 105 degrees Celsius withstands demanding site conditions and extreme temperatures
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 150A
- Double set screw termination provides redundant cable retention for maximum security under vibration and load
- Universal CAM-type compatibility integrates seamlessly with existing power infrastructure from multiple manufacturers
- cULus Listed for the United States and Canada (UL 1691 and CSA C22.2 No. 1691-12)
Certifications & Standards
- cULus Listed, UL File Number E332947
- Not for current interruption: connect and disconnect only when the circuit is de-energized.
- UL 1691 and CSA C22.2 No. 1691-12, Single Pole Locking-Type Separable Connectors
- Environment Rating: UL Enclosure Type 3R (when mated)
- Flame Class: HB / UL94
- RoHS (Restriction of Hazardous Substances) Compliant
Applications
- Concert touring and live event production
- Film, television, and studio power distribution
- Temporary construction site power
- Theme park and entertainment venue installations
- Trade shows and exhibition power systems
- Industrial temporary power connections
- Broadcast and outside broadcast (OB) van power
Compatibility
The K-LOK 150A Male In-Line Connector intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
Frequently Asked Questions
What kind of connector is KL-150LMGY?
KL-150LMGY is a 150-ampere, 600V AC/DC single-pole male inline cable connector from the KUPO K-LOK series. Finished in gray, it belongs to the CAM-type connector family widely used across live events, film production, and temporary industrial power systems.
How much current can KL-150LMGY safely carry?
KL-150LMGY is designed for a maximum continuous load of 150 amperes at up to 600V AC/DC. The brass contacts and Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius work together to maintain safe operating temperatures even under sustained full-load conditions.
How does the gray color coding on KL-150LMGY help on a busy job site?
On a crowded set or event site, identifying conductors quickly is a safety essential. Gray represents Phase C (L3) under the IEC color code. In North America, gray is also permitted for the neutral conductor. Adding gray to the connector inventory ensures full IEC three-phase coverage alongside brown and black. The gray KL-150LMGY connector lets technicians trace circuits visually without needing to check labels or test equipment.
What safety certifications does KL-150LMGY hold?
KL-150LMGY is cULus Listed under UL File Number E332947, certified to UL 1691 and CSA C22.2 No. 1691-12, the US and Canadian standards for single-pole locking-type separable connectors. It carries a UL Enclosure Type 3R (when mated) environment rating, UL94 HB flame classification, and full RoHS (Restriction of Hazardous Substances) compliance.
Can KL-150LMGY work with connectors from other brands?
Absolutely. The K-LOK 150A series uses the industry-standard CAM-type interface, so KL-150LMGY mates directly with compatible single-pole connectors regardless of manufacturer. This makes it easy to expand or upgrade your connector stock incrementally.
What makes KL-150LMGY easy to use during fast-paced setups?
The K-LOK tool-free design means KL-150LMGY can be assembled and disassembled without specialized equipment. The ribbed Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius provides a secure grip even with work gloves, and the alignment arrow guides correct mating orientation - cutting connection time on busy sets and stages.
