Product Description

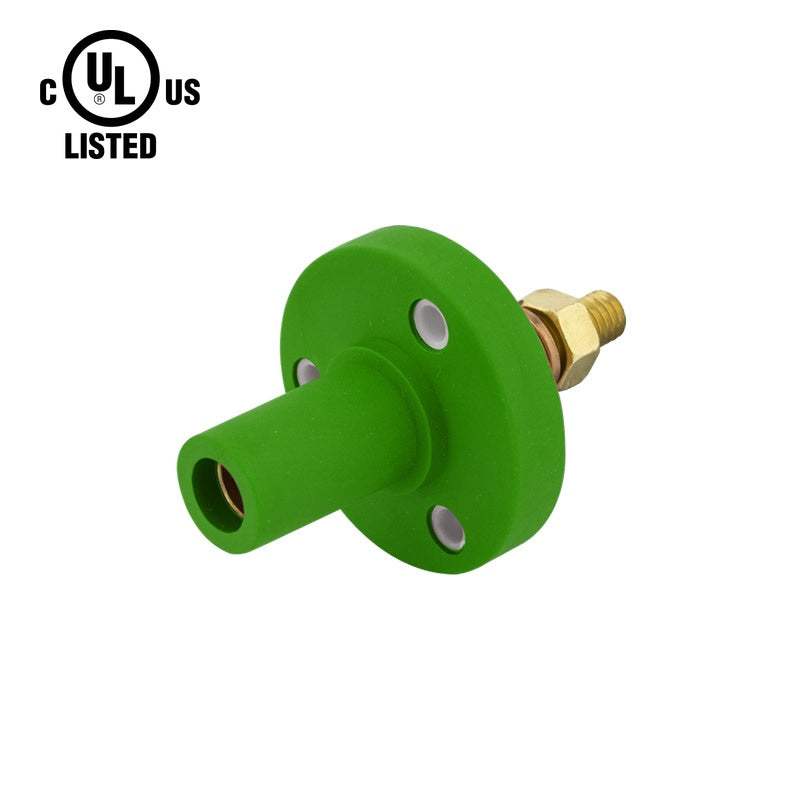

The KUPO K-LOK 150A Female Panel Mount Receptacle (Thread-Stud Type) is engineered for secure, permanent installation in power distribution enclosures, distro boxes, and panel assemblies. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius, brass contacts for superior conductivity, and a threaded stud connection with mounting holes for rigid enclosure attachment, this connector delivers the structural integrity and electrical performance required by professional entertainment and industrial power systems. Full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution infrastructure.
Key Features
- Panel-mount design with threaded stud and mounting holes for secure, vibration-resistant enclosure installation
- Santoprene TPV housing rated to 105 degrees Celsius withstands demanding conditions in permanent installations
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 150A
- Threaded stud connection provides strong, vibration-resistant termination for panel-through wiring
- Universal CAM-type compatibility integrates seamlessly with existing inline connectors from multiple manufacturers
- cULus Listed for the United States and Canada (UL 1691 and CSA C22.2 No. 1691-12)
Certifications & Standards
- cULus Listed, UL File Number E332947
- Not for current interruption: connect and disconnect only when the circuit is de-energized.
- UL 1691 and CSA C22.2 No. 1691-12, Single Pole Locking-Type Separable Connectors
- Environment Rating: UL Enclosure Type 3R (when mated)
- Flame Class: HB / UL94
- RoHS (Restriction of Hazardous Substances) Compliant
Applications
- Concert touring and live event production
- Film, television, and studio power distribution
- Temporary construction site power
- Theme park and entertainment venue installations
- Trade shows and exhibition power systems
- Industrial temporary power connections
- Broadcast and outside broadcast (OB) van power
Compatibility
The K-LOK 150A Female Panel Mount Receptacle intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
Frequently Asked Questions
Who should use KL-150SFG and why?
Lighting technicians, electricians, and power distribution professionals working with 150A temporary power systems will benefit from KL-150SFG. Its green housing provides instant visual phase identification, while the Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius ensures durability in demanding field conditions.
What voltage and amperage is KL-150SFG rated for?
KL-150SFG carries a maximum rating of 150A and 600V AC/DC. It accepts wire gauges from #8 to #2 AWG, making it suitable for the conductor sizes typically used in 150-amp power distribution circuits.
Why choose the green version of the K-LOK 150A female panel mount receptacle?
Green identifies the equipment ground conductor in North America. Under IEC conventions, protective earth is green-yellow. Ground integrity is critical for personnel safety, and a distinct green connector ensures the safety earth is never confused with a current-carrying phase. Choosing KL-150SFG in green ensures your power distribution system follows established color conventions, speeding up setup and reducing wiring errors.
Is KL-150SFG UL listed and what does that mean?
Yes. KL-150SFG is cULus Listed under UL File Number E332947, meaning UL has independently tested and certified it to UL 1691 for the United States and CSA C22.2 No. 1691-12 for Canada. The listing covers both the United States and Canada.
What industries commonly use KL-150SFG?
KL-150SFG is used across live events and touring, film and broadcast, rental and staging inventories, and industrial temporary power. Its 150A / 600V AC/DC rating, combined with CAM-type universal compatibility and green phase coding, makes it a versatile choice across the entertainment, construction, and industrial sectors.
How is KL-150SFG installed in a panel or enclosure?
KL-150SFG mounts directly to power distribution enclosures, distro boxes, and panel assemblies using its threaded stud connection and dedicated mounting holes. Once secured, the connector provides a permanent, vibration-resistant termination point that mates with standard CAM-type inline connectors.
