Product Description

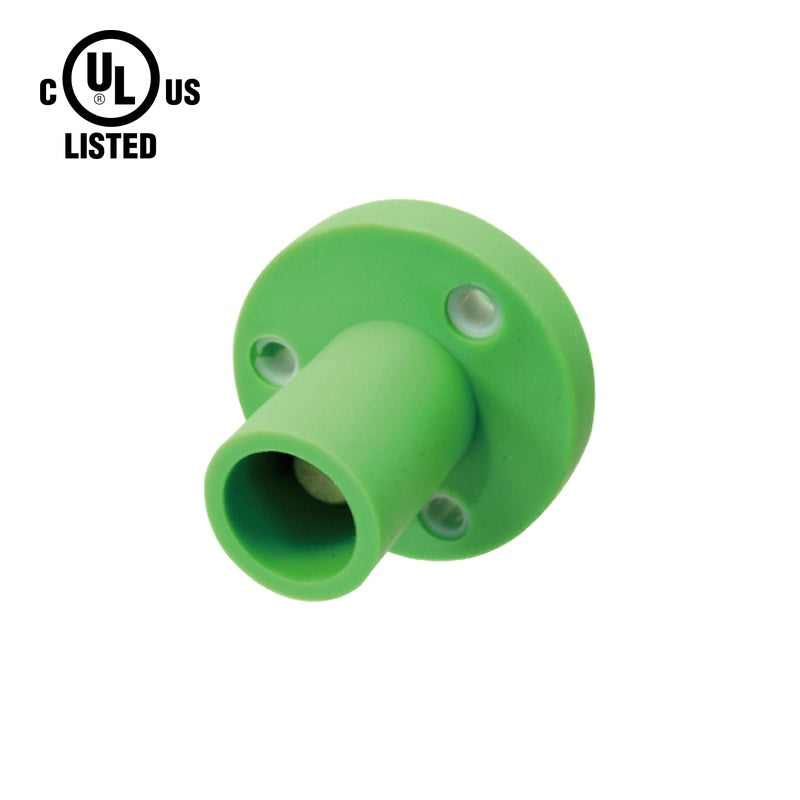

The KUPO K-LOK 150A Male Panel Mount Inlet (Thread-Stud Type) is engineered for secure, permanent installation in power distribution enclosures, distro boxes, and panel assemblies. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius, brass contacts for superior conductivity, and a threaded stud connection with mounting holes for rigid enclosure attachment, this connector delivers the structural integrity and electrical performance required by professional entertainment and industrial power systems. Full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution infrastructure.
Key Features
- Panel-mount design with threaded stud and mounting holes for secure, vibration-resistant enclosure installation
- Santoprene TPV housing rated to 105 degrees Celsius withstands demanding conditions in permanent installations
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 150A
- Threaded stud connection provides strong, vibration-resistant termination for panel-through wiring
- Universal CAM-type compatibility integrates seamlessly with existing inline connectors from multiple manufacturers
- cULus Listed for the United States and Canada (UL 1691 and CSA C22.2 No. 1691-12)
Certifications & Standards
- cULus Listed, UL File Number E332947
- Not for current interruption: connect and disconnect only when the circuit is de-energized.
- UL 1691 and CSA C22.2 No. 1691-12, Single Pole Locking-Type Separable Connectors
- Environment Rating: UL Enclosure Type 3R (when mated)
- Flame Class: HB / UL94
- RoHS (Restriction of Hazardous Substances) Compliant
Applications
- Concert touring and live event production
- Film, television, and studio power distribution
- Temporary construction site power
- Theme park and entertainment venue installations
- Trade shows and exhibition power systems
- Industrial temporary power connections
- Broadcast and outside broadcast (OB) van power
Compatibility
The K-LOK 150A Male Panel Mount Inlet intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
Frequently Asked Questions
What kind of connector is KL-150SMG?
KL-150SMG is a 150-ampere, 600V AC/DC single-pole male panel mount inlet (Thread-Stud Type) from the KUPO K-LOK series. Finished in green, it belongs to the CAM-type connector family widely used across live events, film production, and temporary industrial power systems.
How much current can KL-150SMG safely carry?
KL-150SMG is designed for a maximum continuous load of 150 amperes at up to 600V AC/DC. The brass contacts and Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius work together to maintain safe operating temperatures even under sustained full-load conditions.
How does the green color coding on KL-150SMG help on a busy job site?
On a crowded set or event site, identifying conductors quickly is a safety essential. Green identifies the equipment ground conductor in North America. Under IEC conventions, protective earth is green-yellow. Ground integrity is critical for personnel safety, and a distinct green connector ensures the safety earth is never confused with a current-carrying phase. The green KL-150SMG connector lets technicians trace circuits visually without needing to check labels or test equipment.
What safety certifications does KL-150SMG hold?
KL-150SMG is cULus Listed under UL File Number E332947, certified to UL 1691 and CSA C22.2 No. 1691-12, the US and Canadian standards for single-pole locking-type separable connectors. It carries a UL Enclosure Type 3R (when mated) environment rating, UL94 HB flame classification, and full RoHS (Restriction of Hazardous Substances) compliance.
Can KL-150SMG work with connectors from other brands?
Absolutely. The K-LOK 150A series uses the industry-standard CAM-type interface, so KL-150SMG mates directly with compatible single-pole connectors regardless of manufacturer. This makes it easy to expand or upgrade your connector stock incrementally.
