Product Description

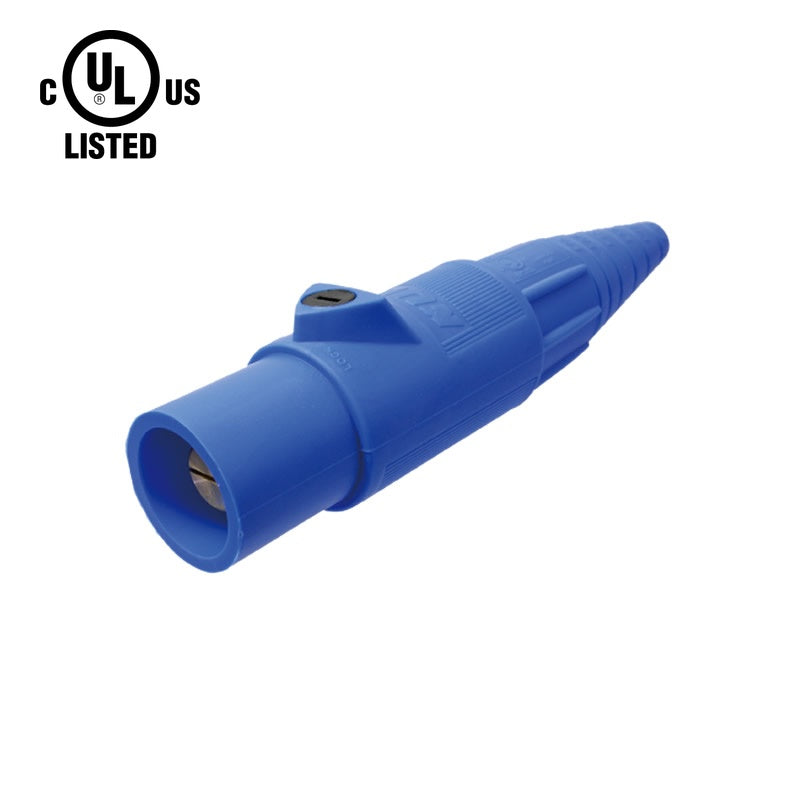

The KUPO K-LOK 400A Male Line Connector is engineered for heavy-duty reliability and safety in high-current temporary power distribution. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius, brass contacts for superior conductivity, and a non-conductive POM (Polyoxymethylene) retaining screw that eliminates accidental current paths, this connector delivers the mechanical strength and electrical performance demanded by large-scale entertainment productions and industrial applications handling up to 400 amperes. The modular, tool-free design enables rapid field assembly and disassembly, while full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution systems.
Key Features
- Non-conductive POM (Polyoxymethylene) retaining screw locks the brass contact firmly in position, eliminating accidental current paths for safer operation
- POM insulation sleeve adds heat resistance and structural strength to the contact assembly
- Ribbed Santoprene TPV housing provides a secure, slip-free grip even when wearing work gloves
- Alignment arrow ensures correct orientation for fast, error-free mating every time
- Santoprene TPV housing rated to 105 degrees Celsius withstands demanding site conditions and extreme temperatures
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 400A
- Double set screw termination accommodates #6 AWG (American Wire Gauge) to 4/0 AWG conductors with redundant cable retention
- Universal CAM-type compatibility integrates seamlessly with existing power infrastructure from multiple manufacturers
- cUL Listed ensures compliance with North American safety standards
Certifications & Standards
- cUL Listed - File Number E332947
- UL 1691 - Standard for Safety for Cam-Type, Locking-Type Separable Connectors
- Environment Rating: UL Enclosure Types 3R
- Flame Class: HB / UL94
- RoHS (Restriction of Hazardous Substances) Compliant
Applications
- Concert touring and live event production
- Film, television, and studio power distribution
- Temporary construction site power
- Theme park and entertainment venue installations
- Trade shows and exhibition power systems
- Industrial temporary power connections
- Broadcast and outside broadcast (OB) van power
Compatibility
The K-LOK 400A Male In-Line Connector intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208V 1 | Green / G-Y | ||||
| NA 277/480V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208V (NEMA / NEC) 2 North America 277/480V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
What does KL-400LMB do and where is it typically used?
KL-400LMB provides a safe, reliable single-pole male connection point for 400A circuits at up to 600V AC/DC. As a line connector with blue color coding, it is commonly used in professional entertainment power distribution, temporary construction feeds, and industrial installations.
What are the electrical ratings of KL-400LMB?
KL-400LMB is rated for 400 amperes maximum continuous current at 600V AC/DC maximum. It accepts conductors from #6 to 4/0 AWG (American Wire Gauge), with brass contacts delivering low-resistance connections for sustained high-current loads.
What does the blue housing on KL-400LMB signify?
In North America, blue designates Phase C (L3), completing the three-phase color set. Under IEC 60446, blue is reserved for the Neutral conductor - making this color essential for international projects and cross-border equipment pools. Color-coded connectors like KL-400LMB allow crews to visually verify correct phase wiring at a glance, which is especially valuable during fast-paced load-ins and load-outs.
What safety standards apply to KL-400LMB?
KL-400LMB meets UL 1691 (Cam-Type, Locking-Type Separable Connectors), is cUL Listed under E332947, rated UL Enclosure Types 3R for weather resistance, carries a HB / UL94 flame class, and complies with RoHS hazardous substance restrictions. These certifications collectively ensure the connector is safe for professional use in entertainment and industrial environments.
Where is KL-400LMB commonly deployed?
You will find KL-400LMB at work in trade shows and exhibition installations that demand professional-grade temporary power. The blue color coding and 400-amp capacity make it particularly well suited for multi-phase power distribution in professional settings.
How do you assemble KL-400LMB in the field?
KL-400LMB features a tool-free modular design that enables rapid assembly and disassembly on site. Strip the cable, insert it through the housing, secure it with the double set screw termination, and lock the brass contact in place with the non-conductive POM retaining screw. The alignment arrow ensures correct orientation every time.
