Product Description

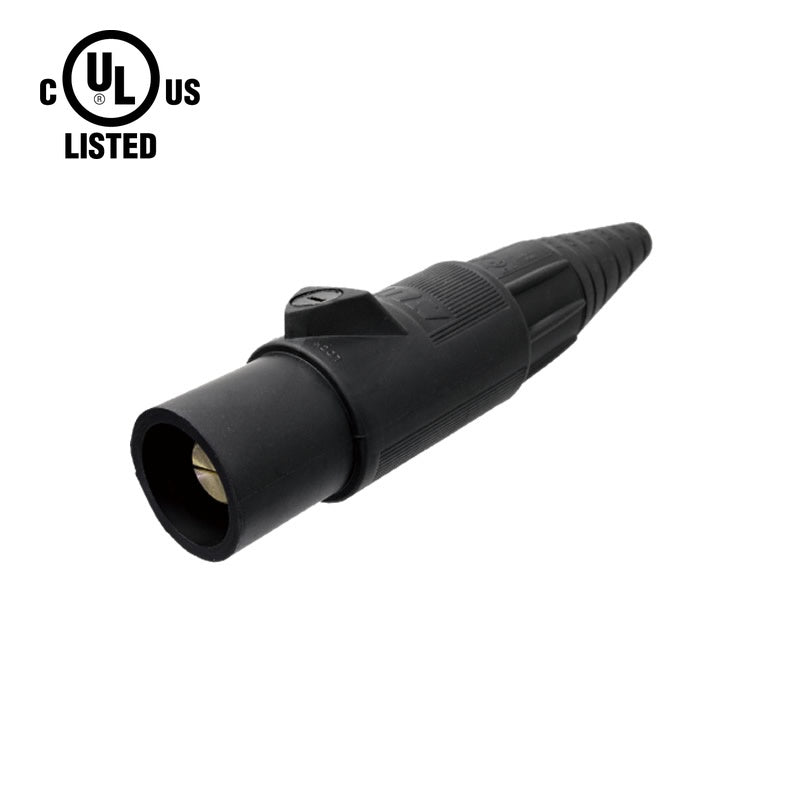

The KUPO K-LOK 400A Male Line Connector is engineered for heavy-duty reliability and safety in high-current temporary power distribution. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius, brass contacts for superior conductivity, and a non-conductive POM (Polyoxymethylene) retaining screw that eliminates accidental current paths, this connector delivers the mechanical strength and electrical performance demanded by large-scale entertainment productions and industrial applications handling up to 400 amperes. The modular, tool-free design enables rapid field assembly and disassembly, while full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution systems.
Key Features
- Non-conductive POM (Polyoxymethylene) retaining screw locks the brass contact firmly in position, eliminating accidental current paths for safer operation
- POM insulation sleeve adds heat resistance and structural strength to the contact assembly
- Ribbed Santoprene TPV housing provides a secure, slip-free grip even when wearing work gloves
- Alignment arrow ensures correct orientation for fast, error-free mating every time
- Santoprene TPV housing rated to 105 degrees Celsius withstands demanding site conditions and extreme temperatures
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 400A
- Double set screw termination accommodates #6 AWG (American Wire Gauge) to 4/0 AWG conductors with redundant cable retention
- Universal CAM-type compatibility integrates seamlessly with existing power infrastructure from multiple manufacturers
- cUL Listed ensures compliance with North American safety standards
Certifications & Standards
- cUL Listed - File Number E332947
- UL 1691 - Standard for Safety for Cam-Type, Locking-Type Separable Connectors
- Environment Rating: UL Enclosure Types 3R
- Flame Class: HB / UL94
- RoHS (Restriction of Hazardous Substances) Compliant
Applications
- Concert touring and live event production
- Film, television, and studio power distribution
- Temporary construction site power
- Theme park and entertainment venue installations
- Trade shows and exhibition power systems
- Industrial temporary power connections
- Broadcast and outside broadcast (OB) van power
Compatibility
The K-LOK 400A Male In-Line Connector intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208V 1 | Green / G-Y | ||||
| NA 277/480V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208V (NEMA / NEC) 2 North America 277/480V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
What kind of connector is KL-400LMBK?
KL-400LMBK is a 400-ampere, 600V AC/DC single-pole male inline cable connector from the KUPO K-LOK series. Finished in black, it belongs to the CAM-type connector family widely used across live events, film production, and temporary industrial power systems.
How much current can KL-400LMBK safely carry?
KL-400LMBK is designed for a maximum continuous load of 400 amperes at up to 600V AC/DC. The brass contacts and Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius work together to maintain safe operating temperatures even under sustained full-load conditions.
How does the black color coding on KL-400LMBK help on a busy job site?
On a crowded set or event site, identifying conductors quickly is a safety essential. Under North American NEMA/NEC conventions, black identifies Phase A (L1), making it the go-to choice for single-phase circuits and the default lead in three-phase systems. In IEC regions, black denotes Phase B (L2). The black KL-400LMBK connector lets technicians trace circuits visually without needing to check labels or test equipment.
What safety certifications does KL-400LMBK hold?
KL-400LMBK is cUL Listed under File Number E332947, certified to UL 1691 - the Standard for Safety for Cam-Type, Locking-Type Separable Connectors. It carries a UL Enclosure Types 3R environment rating, HB / UL94 flame classification, and full RoHS (Restriction of Hazardous Substances) compliance.
Can KL-400LMBK work with connectors from other brands?
Absolutely. The K-LOK 400A series uses the industry-standard CAM-type interface, so KL-400LMBK mates directly with compatible single-pole connectors regardless of manufacturer. This makes it easy to expand or upgrade your connector stock incrementally.
What makes KL-400LMBK easy to use during fast-paced setups?
The K-LOK tool-free design means KL-400LMBK can be assembled and disassembled without specialized equipment. The ribbed Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius provides a secure grip even with work gloves, and the alignment arrow guides correct mating orientation - cutting connection time on busy sets and stages.
