Product Description

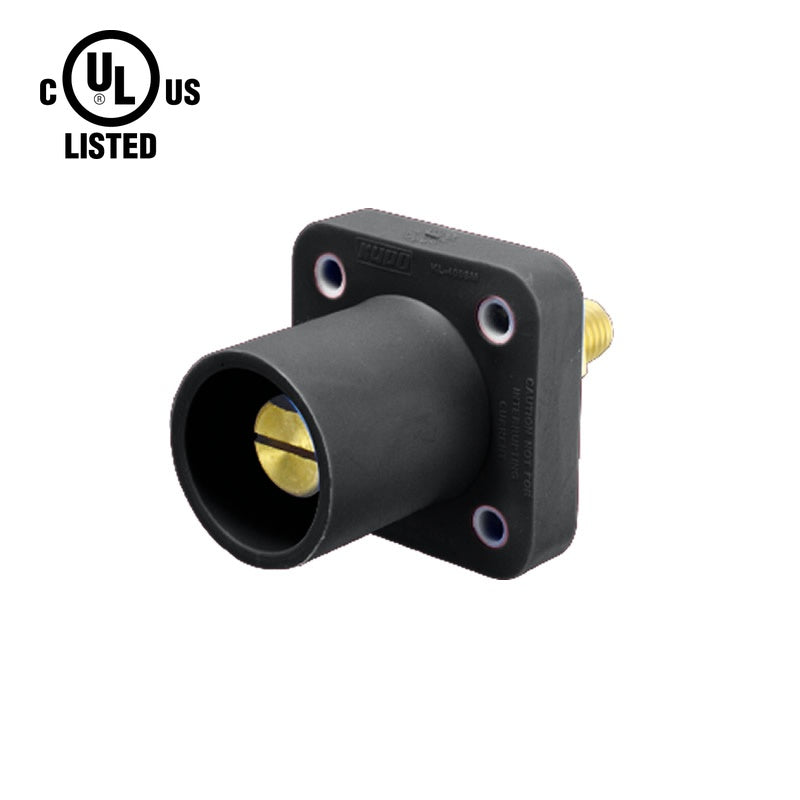

The KUPO K-LOK 400A Male Panel Mount Inlet (Thread-Stud Type) is engineered for secure, permanent installation in high-current power distribution enclosures, distro boxes, and panel assemblies. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius, brass contacts for superior conductivity, and a robust threaded stud connection with mounting holes for rigid enclosure attachment, this connector delivers the structural integrity and electrical performance required by large-scale entertainment productions and industrial power systems handling up to 400 amperes. Full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution infrastructure.
Key Features
- Panel-mount design with threaded stud and mounting holes for secure, vibration-resistant enclosure installation
- Santoprene TPV housing rated to 105 degrees Celsius withstands demanding conditions in permanent installations
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 400A
- Threaded stud connection provides strong, vibration-resistant termination for panel-through wiring accommodating #6 AWG to 4/0 AWG conductors
- Universal CAM-type compatibility integrates seamlessly with existing inline connectors from multiple manufacturers
- UL Listed for the United States (UL 1691)
Certifications & Standards
- UL Listed, UL File Number E332947
- UL evaluated with 4/0 AWG copper conductors
- Not for current interruption: connect and disconnect only when the circuit is de-energized. Not intended for use with motor loads.
- UL 1691, Single Pole Locking-Type Separable Connectors
- Environment Rating: UL Enclosure Type 3R (when mated)
- Flame Class: HB / UL94
- RoHS (Restriction of Hazardous Substances) Compliant
Applications
- Concert touring and live event production
- Film, television, and studio power distribution
- Temporary construction site power
- Theme park and entertainment venue installations
- Trade shows and exhibition power systems
- Industrial temporary power connections
- Broadcast and outside broadcast (OB) van power
Compatibility
The K-LOK 400A Male Panel Mount Inlet intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
Frequently Asked Questions
What does KL-400SMBK do and where is it typically used?
KL-400SMBK provides a safe, reliable single-pole male connection point for 400A circuits at up to 600V AC / 250V DC. As a panel mount receptacle with black color coding, it is commonly used in professional entertainment power distribution, temporary construction feeds, and industrial installations.
What are the electrical ratings of KL-400SMBK?
KL-400SMBK is rated for 400 amperes maximum continuous current at 600V AC / 250V DC maximum. It accepts conductors from #6 to 4/0 AWG (American Wire Gauge; UL evaluated with 4/0 AWG), with brass contacts delivering low-resistance connections for sustained high-current loads.
What does the black housing on KL-400SMBK signify?
Under North American NEMA/NEC conventions, black identifies Phase A (L1), making it the go-to choice for single-phase circuits and the default lead in three-phase systems. In IEC regions, black denotes Phase B (L2). Color-coded connectors like KL-400SMBK allow crews to visually verify correct phase wiring at a glance, which is especially valuable during fast-paced load-ins and load-outs.
What safety standards apply to KL-400SMBK?
KL-400SMBK meets UL 1691 (Single Pole Locking-Type Separable Connectors), is UL Listed under UL File E332947, rated UL Enclosure Type 3R (when mated) for weather resistance, carries a UL94 HB flame rating, and complies with RoHS hazardous substance restrictions. These certifications collectively ensure the connector is safe for professional use in entertainment and industrial environments.
Where is KL-400SMBK commonly deployed?
You will find KL-400SMBK in live event and touring power, film and broadcast production, trade shows, and industrial and emergency temporary power. The black color coding and 400-amp capacity make it particularly well suited for multi-phase power distribution in professional settings.
