Product Description

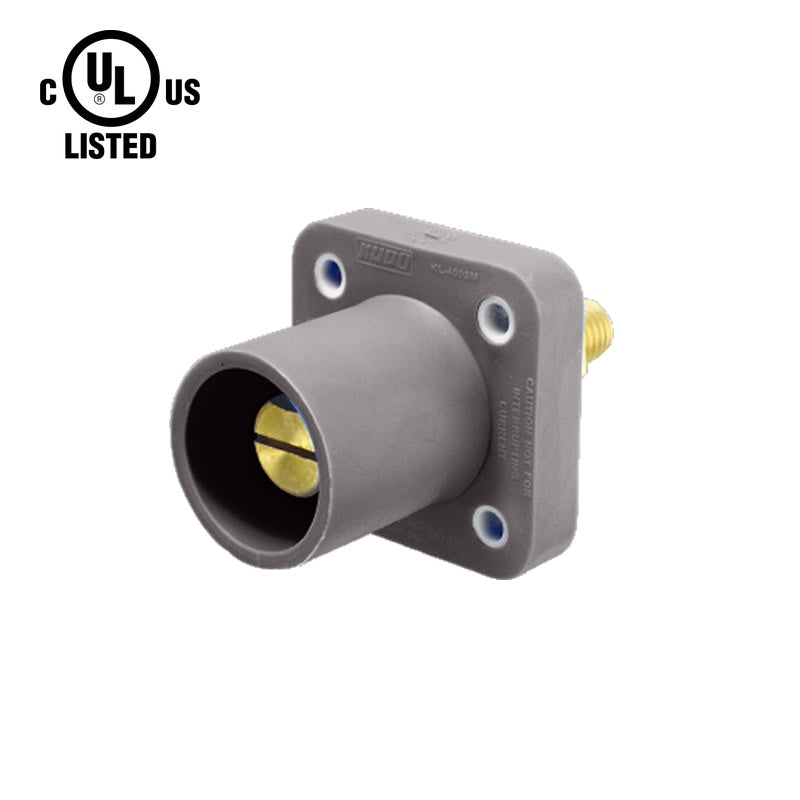

The KUPO K-LOK 400A Male Panel Mount Inlet (Thread-Stud Type) is engineered for secure, permanent installation in high-current power distribution enclosures, distro boxes, and panel assemblies. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius, brass contacts for superior conductivity, and a robust threaded stud connection with mounting holes for rigid enclosure attachment, this connector delivers the structural integrity and electrical performance required by large-scale entertainment productions and industrial power systems handling up to 400 amperes. Full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution infrastructure.
Key Features
- Panel-mount design with threaded stud and mounting holes for secure, vibration-resistant enclosure installation
- Santoprene TPV housing rated to 105 degrees Celsius withstands demanding conditions in permanent installations
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 400A
- Threaded stud connection provides strong, vibration-resistant termination for panel-through wiring accommodating #6 AWG to 4/0 AWG conductors
- Universal CAM-type compatibility integrates seamlessly with existing inline connectors from multiple manufacturers
- UL Listed for the United States (UL 1691)
Certifications & Standards
- UL Listed, UL File Number E332947
- UL evaluated with 4/0 AWG copper conductors
- Not for current interruption: connect and disconnect only when the circuit is de-energized. Not intended for use with motor loads.
- UL 1691, Single Pole Locking-Type Separable Connectors
- Environment Rating: UL Enclosure Type 3R (when mated)
- Flame Class: HB / UL94
- RoHS (Restriction of Hazardous Substances) Compliant
Applications
- Concert touring and live event production
- Film, television, and studio power distribution
- Temporary construction site power
- Theme park and entertainment venue installations
- Trade shows and exhibition power systems
- Industrial temporary power connections
- Broadcast and outside broadcast (OB) van power
Compatibility
The K-LOK 400A Male Panel Mount Inlet intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
Frequently Asked Questions
What kind of connector is KL-400SMGY?
KL-400SMGY is a 400-ampere, 600V AC / 250V DC single-pole male panel mount inlet (Thread-Stud Type) from the KUPO K-LOK series. Finished in gray, it belongs to the CAM-type connector family widely used across live events, film production, and temporary industrial power systems.
How much current can KL-400SMGY safely carry?
KL-400SMGY is designed for a maximum continuous load of 400 amperes at up to 600V AC / 250V DC. The brass contacts and Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius work together to maintain safe operating temperatures even under sustained full-load conditions.
How does the gray color coding on KL-400SMGY help on a busy job site?
On a crowded set or event site, identifying conductors quickly is a safety essential. Gray represents Phase C (L3) under the IEC color code. In North America, gray is also permitted for the neutral conductor. Adding gray to the connector inventory ensures full IEC three-phase coverage alongside brown and black. The gray KL-400SMGY connector lets technicians trace circuits visually without needing to check labels or test equipment.
What safety certifications does KL-400SMGY hold?
KL-400SMGY is UL Listed under UL File Number E332947, certified to UL 1691, the standard for single-pole locking-type separable connectors, and rain tested to UL 50E. It carries a UL Enclosure Type 3R (when mated) environment rating, UL94 HB flame classification, and full RoHS (Restriction of Hazardous Substances) compliance.
Can KL-400SMGY work with connectors from other brands?
Absolutely. The K-LOK 400A series uses the industry-standard CAM-type interface, so KL-400SMGY mates directly with compatible single-pole connectors regardless of manufacturer. This makes it easy to expand or upgrade your connector stock incrementally.
What makes KL-400SMGY suitable for permanent installations?
Unlike inline connectors designed for repeated connection and disconnection, KL-400SMGY is engineered for fixed mounting. Its threaded stud and mounting-hole pattern lock the connector firmly to the enclosure, preventing loosening under vibration - critical for touring racks and permanently installed distro systems alike.
