Product Description

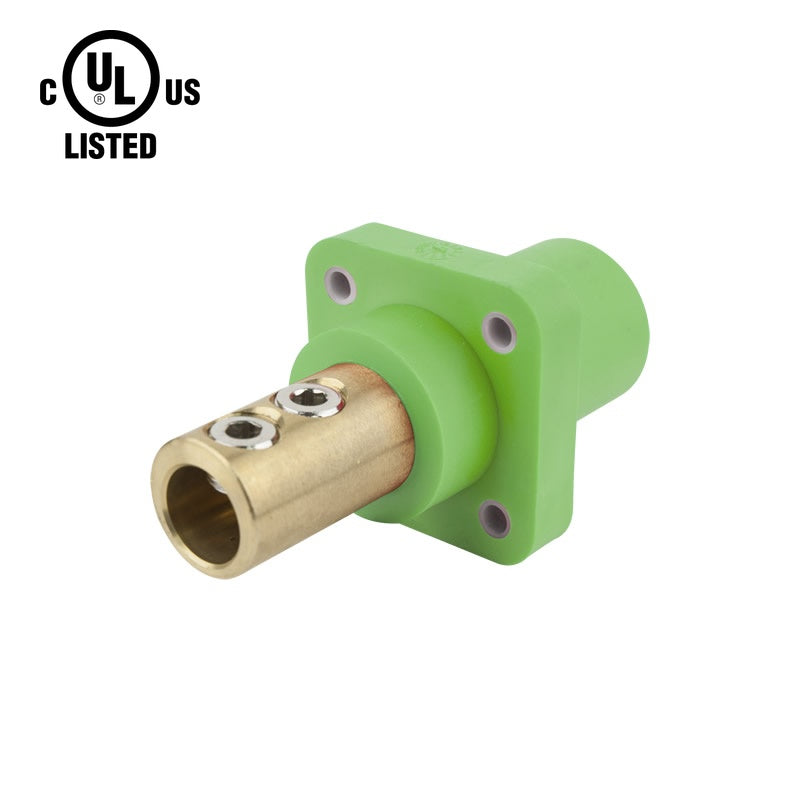

The KUPO K-LOK 400A Male Panel Mount Inlet (Double Set Screw Type) is engineered for secure, permanent installation in high-current power distribution enclosures and panel assemblies where double set screw termination is preferred. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius, brass contacts for superior conductivity, and a double set screw connection for robust cable retention, this connector delivers the structural integrity and electrical performance required by large-scale entertainment productions and industrial power systems handling up to 400 amperes. Full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution infrastructure.
Key Features
- Double set screw panel-mount design provides redundant cable retention for maximum security in permanent installations
- Santoprene TPV housing rated to 105 degrees Celsius withstands demanding conditions in fixed enclosure installations
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 400A
- Double set screw termination accommodates #6 AWG (American Wire Gauge) to 4/0 AWG conductors
- Mounting holes enable secure attachment to enclosures, distro boxes, and panel assemblies
- Universal CAM-type compatibility integrates seamlessly with existing inline connectors from multiple manufacturers
- UL Listed for the United States (UL 1691)
Certifications & Standards
- UL Listed, UL File Number E332947
- UL evaluated with 4/0 AWG copper conductors
- Not for current interruption: connect and disconnect only when the circuit is de-energized. Not intended for use with motor loads.
- UL 1691, Single Pole Locking-Type Separable Connectors
- Environment Rating: UL Enclosure Type 3R (when mated)
- Flame Class: HB / UL94
- RoHS (Restriction of Hazardous Substances) Compliant
Applications
- Concert touring and live event production
- Film, television, and studio power distribution
- Temporary construction site power
- Theme park and entertainment venue installations
- Trade shows and exhibition power systems
- Industrial temporary power connections
- Broadcast and outside broadcast (OB) van power
Compatibility
The K-LOK 400A Male Panel Mount Inlet intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
Frequently Asked Questions
What kind of connector is KL-400SSMG?
KL-400SSMG is a 400-ampere, 600V AC / 250V DC single-pole male panel mount inlet (Double Set Screw Type) from the KUPO K-LOK series. Finished in green, it belongs to the CAM-type connector family widely used across live events, film production, and temporary industrial power systems.
How much current can KL-400SSMG safely carry?
KL-400SSMG is designed for a maximum continuous load of 400 amperes at up to 600V AC / 250V DC. The brass contacts and Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius work together to maintain safe operating temperatures even under sustained full-load conditions.
How does the green color coding on KL-400SSMG help on a busy job site?
On a crowded set or event site, identifying conductors quickly is a safety essential. Green identifies the equipment ground conductor in North America. Under IEC conventions, protective earth is green-yellow. Ground integrity is critical for personnel safety, and a distinct green connector ensures the safety earth is never confused with a current-carrying phase. The green KL-400SSMG connector lets technicians trace circuits visually without needing to check labels or test equipment.
What safety certifications does KL-400SSMG hold?
KL-400SSMG is UL Listed under UL File Number E332947, certified to UL 1691, the standard for single-pole locking-type separable connectors, and rain tested to UL 50E. It carries a UL Enclosure Type 3R (when mated) environment rating, UL94 HB flame classification, and full RoHS (Restriction of Hazardous Substances) compliance.
Can KL-400SSMG work with connectors from other brands?
Absolutely. The K-LOK 400A series uses the industry-standard CAM-type interface, so KL-400SSMG mates directly with compatible single-pole connectors regardless of manufacturer. This makes it easy to expand or upgrade your connector stock incrementally.
What housing material is used in KL-400SSMG and why does it matter?
KL-400SSMG uses a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius. Santoprene TPV is chosen for its combination of rubber-like flexibility, heat resistance up to 105 degrees Celsius, and resistance to oils, chemicals, and weathering - ideal for panel mount receptacles that remain permanently installed in demanding environments.
