Product Description

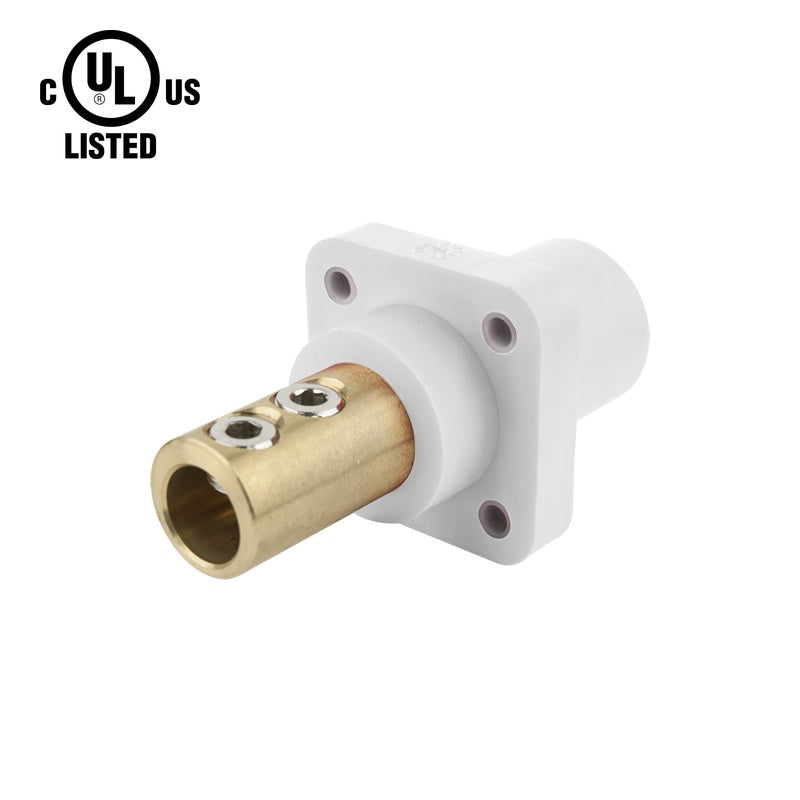

The KUPO K-LOK 400A Male Panel Mount Receptacle (Double Set Screw Type) is engineered for secure, permanent installation in high-current power distribution enclosures and panel assemblies where double set screw termination is preferred. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius, brass contacts for superior conductivity, and a double set screw connection for robust cable retention, this connector delivers the structural integrity and electrical performance required by large-scale entertainment productions and industrial power systems handling up to 400 amperes. Full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution infrastructure.
Key Features
- Double set screw panel-mount design provides redundant cable retention for maximum security in permanent installations
- Santoprene TPV housing rated to 105 degrees Celsius withstands demanding conditions in fixed enclosure installations
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 400A
- Double set screw termination accommodates #6 AWG (American Wire Gauge) to 4/0 AWG conductors
- Mounting holes enable secure attachment to enclosures, distro boxes, and panel assemblies
- Universal CAM-type compatibility integrates seamlessly with existing inline connectors from multiple manufacturers
- cUL Listed ensures compliance with North American safety standards
Certifications & Standards
- cUL Listed - File Number E332947
- UL 1691 - Standard for Safety for Cam-Type, Locking-Type Separable Connectors
- Environment Rating: UL Enclosure Types 3R
- Flame Class: HB / UL94
- RoHS (Restriction of Hazardous Substances) Compliant
Applications
- Concert touring and live event production
- Film, television, and studio power distribution
- Temporary construction site power
- Theme park and entertainment venue installations
- Trade shows and exhibition power systems
- Industrial temporary power connections
- Broadcast and outside broadcast (OB) van power
Compatibility
The K-LOK 400A Male Panel Mount Receptacle intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208V 1 | Green / G-Y | ||||
| NA 277/480V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208V (NEMA / NEC) 2 North America 277/480V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
What is KL-400SSMW and what is it designed for?
KL-400SSMW is a KUPO K-LOK 400A single-pole male panel mount receptacle (Double Set Screw Type) with a white housing, rated for 600V AC/DC maximum. It is engineered for heavy-duty temporary power distribution in entertainment, industrial, and event production settings. The white color coding aids rapid phase identification on the job site.
What wire sizes does KL-400SSMW accept?
KL-400SSMW accommodates conductors ranging from #6 to 4/0 AWG. The brass contact assembly ensures reliable electrical performance across this full conductor range, supporting up to 400A at 600V AC/DC.
Which electrical phase does the white color represent on KL-400SSMW?
White is universally recognized in North America as the Neutral conductor per NEC conventions. Using a dedicated white connector for neutral runs eliminates guesswork during setup and teardown, reducing the risk of miswired circuits. Having a dedicated white connector in your inventory means phase assignments are physically enforced, minimizing the chance of cross-phase connection errors.
How does KL-400SSMW protect against electrical hazards?
KL-400SSMW incorporates multiple safety features: the Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 degrees Celsius resists heat and impact, brass contacts minimize resistive heating, and the design meets UL 1691 safety requirements under cUL Listed E332947. The UL Enclosure Types 3R rating also provides protection in wet or outdoor conditions.
Is KL-400SSMW compatible with other CAM-type connectors?
Yes. KL-400SSMW follows the universal CAM-type single-pole connector standard and intermates with CAM-type connectors from all major manufacturers. This cross-brand compatibility means you can integrate K-LOK connectors into existing power distribution systems without replacing your entire inventory.
What is the advantage of the double set screw design on KL-400SSMW?
The double set screw termination on KL-400SSMW provides redundant cable clamping - each screw independently secures the conductor, adding a layer of safety against vibration-induced loosening. This is particularly valuable in touring rigs and mobile power systems where connectors experience constant mechanical stress.
