Product Description

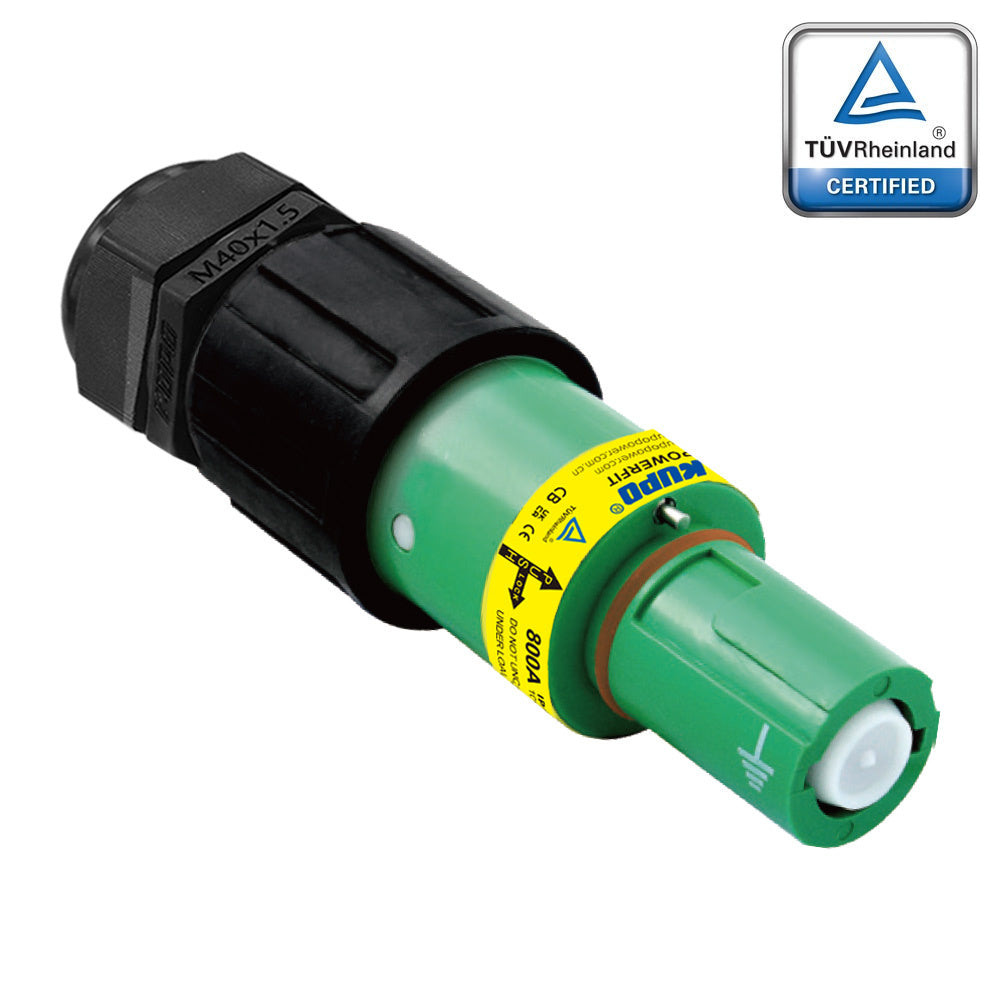

The PFLD-EGN-C300-400-M40-M50 is an 800A PowerFit single-pole line drain connector for high-current temporary and permanent power distribution. Its green housing identifies Earth / Ground, while the crimp (for 400mm2 cable) termination supports heavy cable or busbar-style integration depending on the connector format. Silver-plated copper contacts, high-impact thermoplastic insulation, IP67 protection when mated, and UL94-V0 body material make the connector suitable for demanding event, industrial, energy storage, and generator distribution environments.
Key Features
- Copper contact with silver plating ensures excellent conductivity
- Ergonomic rubber grip enhances handling comfort and safety
- Durable thermoplastic body offers superior impact resistance and electrical insulation
- O-ring provides an excellent protection against water and dust ingress after mating
- M40*1.5 cable gland with rubber bushing for secure IP67-rated sealing
Certifications & Standards
- TÜV certification listed on source spec sheet
- CE marking for European market compliance
- RoHS compliance restricts hazardous substances
- REACH compliance supports material traceability
- UL94-V0 flame rating for the connector body material
Applications
The PFLD-EGN-C300-400-M40-M50 supports high-current power distribution where single-pole connectors must remain easy to identify, quick to mate, and protected against demanding site conditions. Typical uses include event power distribution, generator rental, industrial switchgear, battery energy storage systems, and other professional power systems that require durable 800A connectors.
Compatibility
This connector belongs to the KUPO PowerFit single-pole connector family. The push-and-twist interface, colour-coded housing, and listed electrical ratings make it suitable for PowerFit system layouts where mating connector type, conductor role, and project wiring convention are confirmed before installation.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208V 1 | Green / G-Y | ||||
| NA 277/480V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208V (NEMA / NEC) 2 North America 277/480V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
What is the PFLD-EGN-C300-400-M40-M50 and what role does it play in a PowerFit system?
PFLD-EGN-C300-400-M40-M50 is a KUPO PowerFit 800A line drain connector with a green housing for Earth / Ground. As an inline drain-side connector, it forms part of a single-pole high-current connection and is designed for IP67 protection when mated.
How much current and voltage can PFLD-EGN-C300-400-M40-M50 handle?
PFLD-EGN-C300-400-M40-M50 is rated for 800A Maximum. The voltage rating is 1000V AC/DC Maximum, with a 4500V AC test voltage, insulation resistance greater than 5000 megohms at 500V AC, and contact resistance of 0.1 milliohms.
What does the green housing on PFLD-EGN-C300-400-M40-M50 identify?
The green housing identifies Earth / Ground. The source spec sheet associates this colour with protective earth, so the colour should be checked against the project's wiring convention before installation.
How is PFLD-EGN-C300-400-M40-M50 terminated and operated?
PFLD-EGN-C300-400-M40-M50 uses crimp (for 400mm2 cable) contact termination and a push-and-twist connection interface. O-ring sealing supports IP67 protection after mating.
What certifications and environmental protections are listed for PFLD-EGN-C300-400-M40-M50?
The spec sheet lists TÜV, CE, RoHS, and REACH compliance, IP67 rating while mated, UL94-V0 flammability rating for the body material, and a working temperature range of -25 to 125 degrees Celsius.
