Product Description

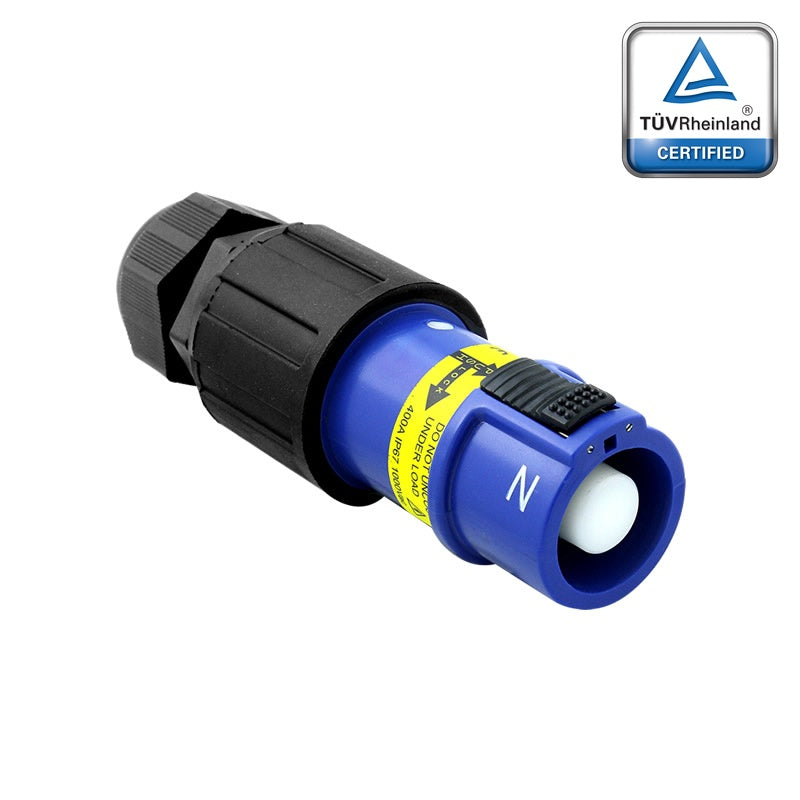

The PFLS-NBL-S120M40A is a 400A inline cable connector for neutral (N) distribution, delivering the IEC-standard blue neutral identification adopted across most of the world's industrial power systems. This Line Source connector houses the male contact and innovative patent key-release pin, enabling tool-free disconnection while maintaining a low-impedance neutral return path. Engineered for global industrial infrastructure where neutral is the backbone of three-phase power balance and operational safety.
Key Features
- The neutral function is critical: it closes three-phase current loops and balances voltage across all three phases. Contact resistance below 0.1 milliohms and insulation integrity above 5000M Ohms ensure that current imbalances are minimized, protecting sensitive electronic loads and preventing voltage rise across the distribution network.
- The male contact and key-release mechanism enable rapid, deliberate mating and unmating without specialized tools. In multi-circuit installations where neutral is shared, controlled key-release disconnection prevents accidental circuit isolation and maintains system voltage stability during maintenance or reconfiguration.
- The source variant uses a shorter polyoxymethylene (POM) cotter pin optimized for cable-mounted operation. Field disassembly with a small slotted screwdriver allows inspection, cleaning, or pin replacement without downtime, ensuring continuous neutral connectivity during troubleshooting.
- Rated for 400A continuous with 120mm² cable, scaling to 660A with 240mm² cable. Neutral carries up to 100% of phase current in unbalanced loads; this connector is sized to handle full-phase amperage, preventing neutral bottlenecks that can degrade system performance.
Certifications & Standards
- Blue is the universal neutral color under IEC conventions - the most widely adopted standard across Europe, Asia, Africa, and numerous regions worldwide. This connector ensures consistent neutral identification in international installations, joint ventures, and multi-regional power systems without re-specification or retraining.
- TÜV Rheinland certified (ID 1111303479), CE marked, RoHS, and REACH compliant. Meets all current IEC 60364 (Wiring Rules), EN standards, and regulatory requirements for industrial electrical installations worldwide.
Applications
- Global industrial power distribution centers requiring IEC-standard neutral identification
- Three-phase systems with unbalanced loads requiring reliable return-path current handling
- European, Asian, and multi-regional installations where blue neutral is mandatory
- High-cycle reconfigurable distribution hubs (500+ mating cycles)
- Cable-to-cable neutral handoff in modular and scalable power systems
- Clean-room and critical facilities requiring UL94-V0 flame resistance
- Outdoor installations with IP67 sealed mating protection
Compatibility
The PFLS-NBL-S120M40A mates with corresponding PFLD (Line Drain) connectors and PFPS/PFPD panel-mount variants. Compatible with major brands of single-pole power connectors. R120 reduction sleeve (brass, silver-plated) accommodates up to 16.50mm diameter wire.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208V 1 | Green / G-Y | ||||
| NA 277/480V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208V (NEMA / NEC) 2 North America 277/480V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
Why was PFLS-NBL-S120M40A designed with a key-release mechanism?
PFLS-NBL-S120M40A is a KUPO PowerFit 400A line source connector with a blue housing, designated for the Neutral (N) conductor under Europe and UK (IEC 60446) conventions. As the source side of an inline cable connection, it features the innovative patent key-release pin that enables tool-free disconnection. The push-and-twist mechanism secures the connection during operation while allowing rapid uncoupling when needed. It is commonly deployed in sports venue and stadium event applications. Stadium events combine massive power demands with outdoor exposure and strict safety requirements.
How does PFLS-NBL-S120M40A maintain electrical integrity at high current loads?
PFLS-NBL-S120M40A is rated for 400 amperes continuous with 120mm2 cable, scaling to 660 amperes with 240mm2 cable. The maximum voltage rating is 1000V AC or 1500V DC. The M40 cable gland accommodates cables through two included rubber bushings (inner diameter 23mm and 33mm), and the R120 reduction sleeve (brass with silver plating) handles conductor diameters up to 16.50mm. Set screws require a minimum torque of 10.5 N/m for reliable termination.
Why is blue used for the neutral connector PFLS-NBL-S120M40A in Europe and UK (IEC 60446) systems?
Blue as Neutral follows IEC 60446, the current harmonized European and UK standard. Under IEC, blue is exclusively reserved for the neutral conductor. This is the most commonly specified neutral color in international installations and is mandatory in EU member states. On the Line Source connector, the blue housing wraps the 170mm body including the area around the key-release mechanism. This means the phase is identifiable even during the push-and-twist connection process, reducing the chance of connecting to the wrong N circuit. Using blue for neutral in IEC jurisdictions is not optional. It is a code requirement that simplifies circuit identification and improves safety across multi-national installations.
What makes PFLS-NBL-S120M40A safe for professional high-current applications?
PFLS-NBL-S120M40A is TUV Rheinland certified (ID 1111303479) under Type Approval, Safety, and Regular Production Surveillance categories. It also carries CE marking, RoHS compliance (Restriction of Hazardous Substances), and REACH compliance. The housing material achieves a UL94-V0 flammability rating, which is the highest classification for vertical flame resistance in plastics, meaning the material self-extinguishes within 10 seconds with no flaming drips. The key-release pin mechanism has been certified as part of the TUV evaluation, ensuring that the disconnect feature meets the same safety standards as the connection itself.
What makes PFLS-NBL-S120M40A versatile for sports venue and stadium event applications?
