Product Description

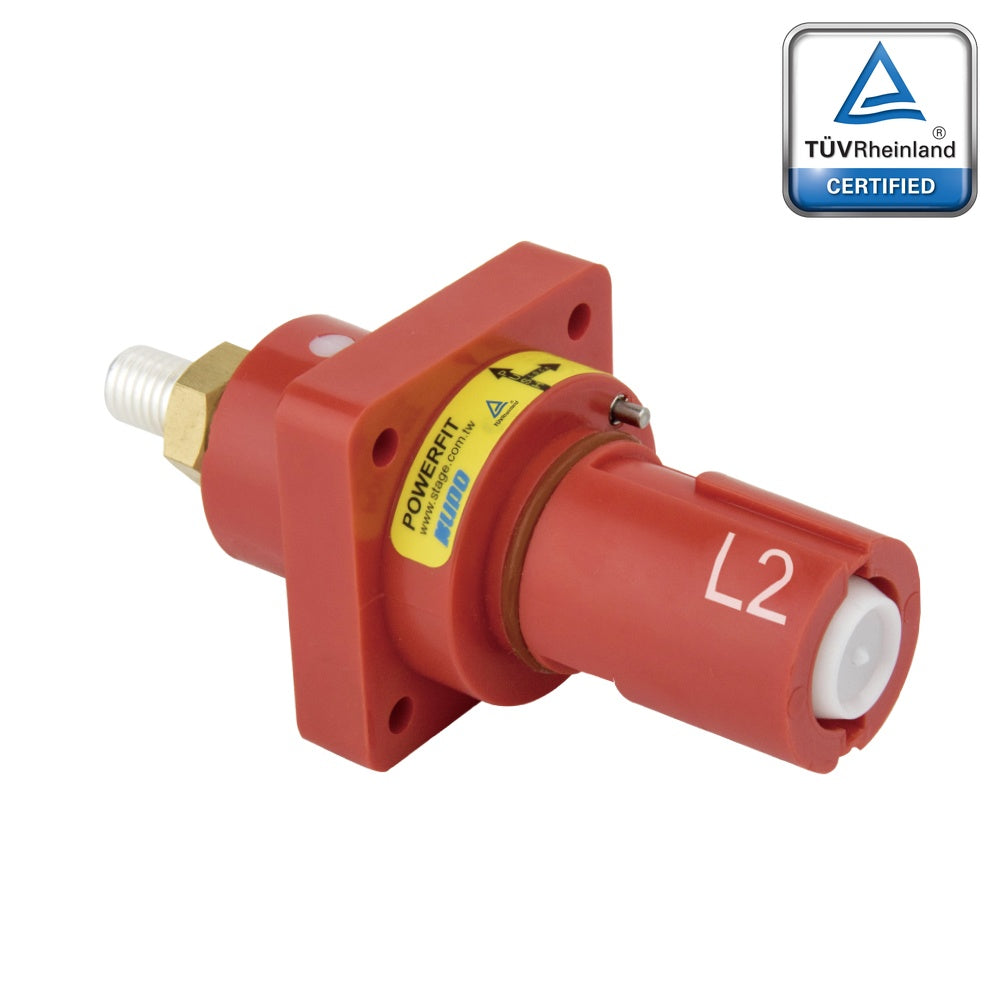

Film and television production facilities operating under North American electrical code standards require permanent power infrastructure that delivers 400A across secondary phase circuits to lighting rigs, camera equipment systems, and support infrastructure mounted in outdoor stages and soundstage electrical rooms. The PowerFit 400A Panel Drain connector in red (Phase 2 / L2 NEC) provides the enclosure-mount architecture for secondary phase distribution in production facility switchboards, enabling rapid reconfiguration during multi-day shoot schedules while maintaining the structural integrity demanded by UL94-V0 rated thermoplastic construction. The key-release pin simplifies disconnection during de-energized maintenance, while the plastic end cap prevents accidental contact with live electrical surfaces during crowded equipment bay work.
Key Features
- 400A continuous current rating at 120mm² cable
- Female contact design ensures reliable mating with Panel Source connectors across consecutive shoot days
- M12 threaded post with brass nut and spring washer provides secure fastening in soundstage cabinet installations
- Four diameter 5.5mm fixing holes on a 42mm x 42mm square around a 47.5mm diameter cut-out ensure secure mechanical mounting
- Key-release pin enables production electricians to safely disconnect feeds between take configurations without tools
- Plastic end cap over female contact provides IP2X finger protection in high-traffic production cable management areas
- Push-and-twist locking mechanism resists accidental separation from equipment movement and vibration
- Silver-plated brass contact delivers 0.1 milliohms contact resistance, minimizing voltage drop across extensive grid lighting systems
- Non-conductive UL94-V0 thermoplastic housing meets North American motion picture safety standards
- IP67 rating while mated provides protection against water ingress from outdoor weather conditions and studio spray cooling systems
- Maximum nut torque: 12 to 14 N·m ensures secure mounting without risk of rework during shoot schedules
- Red color codes as Phase 2 (L2) under NEC, providing standard phase identification for North American production crews
- Not for current interruption: connect and disconnect only when the circuit is de-energized
Certifications & Standards
- TÜV Rheinland certified to IEC 61984 (ID 1111322264)
- CE marking for international production equipment certification
- RoHS and REACH compliant for environmental responsibility in production operations
- UL94-V0 flame retardancy rating for motion picture safety standards
- IP67 rating (dust-tight, submersion-resistant) suitable for outdoor stage and studio installations
- 1000V AC/DC maximum operating voltage; 4500V AC dielectric test
- Short-time withstand current: 16 kA for 1 s; insulation resistance greater than 5000 megohms at 500V AC
- Working temperature range: -25 to 125 degrees Celsius
Applications
- Film and television soundstage permanent switchboard installations serving multiple lighting and power grids
- Outdoor stage power distribution enclosures for concert touring and event production facilities
- Production support equipment distribution (air conditioning, water systems, safety equipment) in production villages
- Camera truck and mobile production facility power interconnection systems
- Lighting truck trailer permanent power distribution panels for multi-camera field shoots
- Studio generator paralleling switchboards for seamless power backup during live broadcast productions
- Post-production facility power management for editing suites and audio mixing systems
Compatibility
The PowerFit 400A Panel Drain connector is compatible with major brands of single-pole power connector systems used in North American film and television production infrastructure. Its M12 threaded post interface and push-and-twist mating mechanism follow standardized connection geometry across certified suppliers. Verify that your Panel Source connector carries production-grade certifications and matches your facility power specifications. The color-coded red housing complies with NEC phase identification standards used throughout North American motion picture and broadcast industry electrical systems.
Phase / Wire Color Convention
Frequently Asked Questions
What is PFPD-2R and where is it permanently installed?
PFPD-2R is a KUPO PowerFit 400A panel drain connector with a red housing, identifying Line 2 (L2) under North America (NEC) conventions. Mounted permanently in enclosures and distribution boxes, it serves as the final destination in the PowerFit electric direction flow, where incoming power from Line Source connectors enters the downstream equipment. The four-point flange mount and M12 threaded post ensure vibration-resistant installation.
What current and voltage ratings make PFPD-2R suitable for permanent distribution?
PFPD-2R is rated for 400 amperes continuous with 120mm² cable. The maximum voltage rating is 1000V AC or DC. The insulation resistance exceeds 5000 megaohms at 500V AC, and the test voltage rating of 4500V AC provides substantial safety margin. Its short-time withstand rating is 16 kA for 1 second.
How does the red color coding on PFPD-2R help identify L2 on the jobsite?
Red marks Line 2 (L2) under North American NEC conventions. In a standard three-phase system, the color sequence is black (L1), red (L2), blue (L3). Red L2 is one of the most commonly ordered phase variants for US and Canadian power distribution, appearing in virtually every multi-phase temporary power installation. On the Panel Drain, the red color is visible on the connector face that protrudes from the enclosure panel. When multiple PowerFit connectors are mounted side by side in a distribution box, the color-coded faces create a clear visual map of the phase layout for incoming connections. Red is one of the most visually distinctive colors on a busy event site, helping crews quickly trace the second phase conductor even from a distance.
How does PFPD-2R meet safety requirements for panel-mounted power distribution?
PFPD-2R is TÜV Rheinland certified to IEC 61984 (ID 1111322264) under Type Approval, Safety, and Regular Production Surveillance categories. It also holds CB and UKCA certificates, and carries CE marking, RoHS compliance (Restriction of Hazardous Substances), and REACH compliance. The housing material achieves a UL94-V0 flammability rating, which is the top rating in the UL94 vertical burn (V) series, meaning the material self-extinguishes within 10 seconds with no flaming drips. For permanent installations, the IP2X finger protection prevents accidental contact with live parts when the connector face is exposed, and the four-point flange mount exceeds mechanical retention requirements.
Can PFPD-2R work alongside connectors from other brands in a distribution panel?
PowerFit connectors are designed to be compatible with major brands of single-pole power connector. The high-impact thermoplastic housing absorbs punishment, the IP67 seal protects against dust ingress (the '6' in IP67 means dust-tight), and the M40 cable gland secures cables against pull-out. For L2 circuits using North America (NEC) color conventions, the red PFPD-2R ensures that phase identification remains consistent when mixing PowerFit connectors with existing inventory.
What are the mounting requirements for PFPD-2R in a panel?
Installing PFPD-2R requires a 47.5mm diameter cutout in the enclosure panel. The connector mounts through four 5.5mm fixing holes on a 42 x 42mm square, distributing clamping force evenly for vibration resistance. The M12 threaded post accepts the brass nut and washer, tightened to a maximum of 12 to 14 N·m. IP2X finger protection is built into the connector face, preventing accidental contact with live parts when no mating connector is inserted. A plastic end cap protects the contacts during storage and transport. The Panel Drain has a 55.0mm flange width and 72.2mm total depth, with a 37.0mm body diameter. The flange provides a generous mounting surface for secure enclosure attachment.
