Product Description

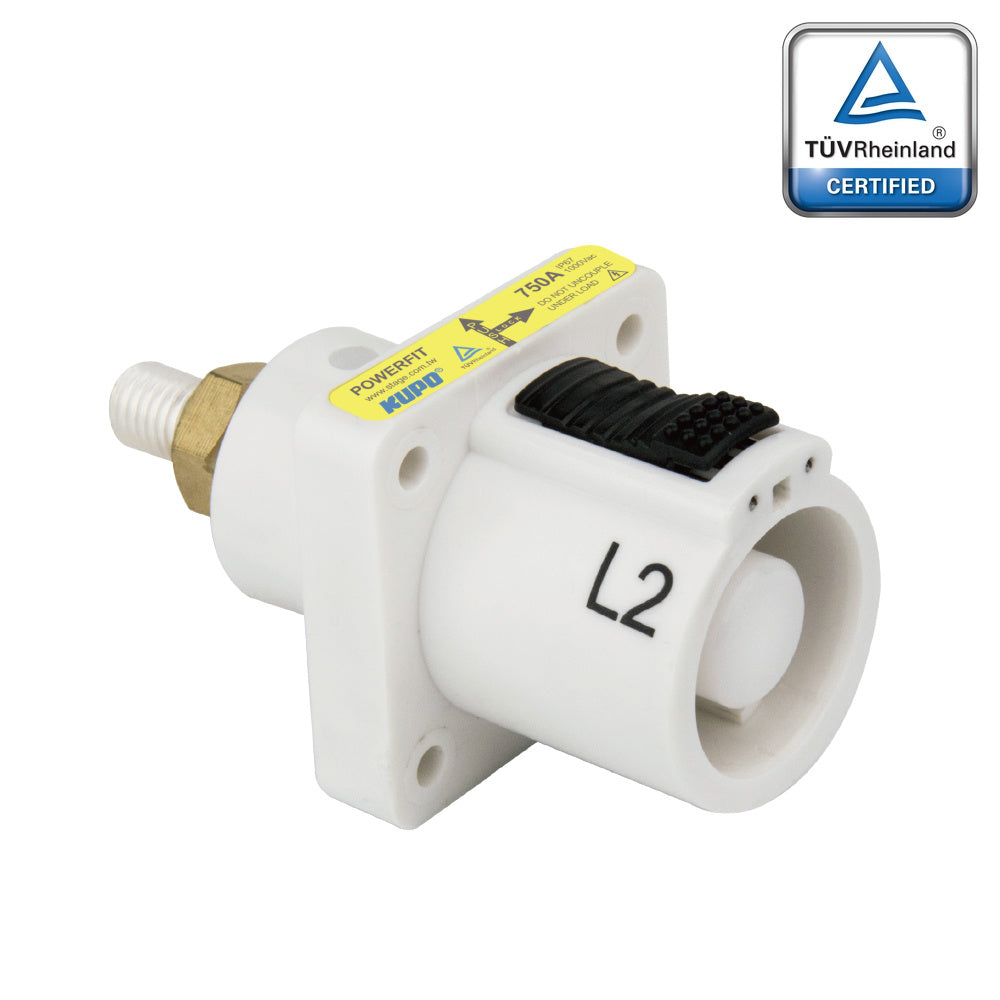

High-current power distribution demands connectors that stay reliable under repeated load-in, load-out, and field-service cycles. The PowerFit 750A Panel Source connector in white is built for L2 circuits, combining male contact, silver-plated copper contact construction, and an innovative key-release pin mechanism. For installation, it uses an M12 threaded post mount with brass nut and phosphor bronze washer for permanent panel installation. IP67 protection when mated and a UL94-V0 thermoplastic body help maintain safe performance in demanding touring, event, and industrial environments.
Key Features
- 750A High-Current Rating: 750A Maximum for heavy-duty single-pole power distribution
- Male Contact Design: Panel Source (Male Contact) for mating with compatible PowerFit Line Drain or Panel Drain connectors
- Innovative Key-Release Pin: Allows fast, convenient, tool-free disconnection during production changeovers
- Copper Silver-Plated Contact: Excellent conductivity with 0.1m Ohms contact resistance for reduced voltage drop
- Panel-Mount Construction: M12 threaded post with brass nut and phosphor bronze washer for fixed installations
- Four-Point Flange Mounting: 42mm x 42mm cut-out with four diameter 5.5mm fixing holes
- Durable Thermoplastic Housing: Non-conductive high impact-resistant body with UL94-V0 flame rating
- Voltage Capacity: 1000V AC, 1500V DC Maximum with 4500V AC test voltage
- Certified Safety: TUV, CE, RoHS and REACH compliant for professional power distribution systems
Certifications & Standards
- TÜV certified for professional power connector applications
- CE Marking
- RoHS Compliant
- REACH Compliant
- UL94-V0 Flame Rating
- IP67 rating while mated
- 1000V AC, 1500V DC maximum voltage rating; 4500V AC test voltage
- Short circuit rating: Up to 35.5kA; insulation resistance > 5000M Ohms at 500V AC
Applications
- Live Event Audio & Video Production
- Generator Panels, Distro Boxes & Power Supply Enclosures
- Touring Sound Systems
- Stage & Lighting Power Distribution
- Concert & Festival Infrastructure
- Mobile Production Trucks
- Rental & House Power Management
- Industrial High-Current Power Distribution
Compatibility
- Rated Amperage: 750A Maximum
- Voltage Range: 1000V AC, 1500V DC Maximum
- Panel Mount: M12 threaded post; 42mm x 42mm cut-out with four diameter 5.5mm fixing holes
- Mating Standard: Push-and-twist with key release mechanism
- Mating Role: Panel Source (Male Contact) mates with compatible Line Drain or Panel Drain connectors
- Phase Marking: L2 (Phase B) (AU/NZ Legacy)
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208V 1 | Green / G-Y | ||||
| NA 277/480V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208V (NEMA / NEC) 2 North America 277/480V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
What makes PFPS-2W-T7 different from a standard high-current source connector?
PFPS-2W-T7 is not just a color-coded 750A panel source; it is the source-side half of a keyed PowerFit connection. The key-release pin gives crews a controlled way to uncouple the connector during changeovers instead of fighting the lock under time pressure. On generator tie-ins, touring distros, and mobile power trucks, that matters because the connector may be handled repeatedly by different technicians across a long production day.
How does PFPS-2W-T7 manage heat and voltage drop at 750A loads?
PFPS-2W-T7 uses a silver-plated copper contact with 0.1m Ohms contact resistance, which helps limit resistive heating at sustained current. It is rated for 750A Maximum with a maximum voltage rating of 1000V AC, 1500V DC, a 4500V AC dielectric test voltage, and short circuit capacity of up to 35.5kA. For real installations, the connector should still be paired with correctly sized cable, proper termination practice, and load calculations for the full distribution run.
What does the white housing on PFPS-2W-T7 tell the crew before power is applied?
The white housing identifies L2 (Phase B) (AU/NZ Legacy). On the Panel Source connector, the color remains visible on the panel-mounted face, so a technician can trace the intended conductor before coupling or energizing the system. This is more than cosmetic: the SKU code and housing color work together to reduce cross-phase mistakes when different regional color conventions appear in the same rental inventory.
What panel detail matters most when mounting PFPS-2W-T7?
PFPS-2W-T7 uses an M12 threaded post and mounts through a 42mm x 42mm cut-out with four diameter 5.5mm fixing holes. The brass nut and phosphor bronze washer should be tightened within the specified 12-14 N/meter maximum torque range. That mounting geometry is what keeps the connector stable when heavy feeder cables are repeatedly connected, disconnected, or pulled at an angle near a distro panel.
How does PFPS-2W-T7 hold up in outdoor event or rental-house service?
PFPS-2W-T7 is IP67 rated while mated, uses a non-conductive high impact-resistant thermoplastic body, and carries a UL94-V0 body material rating. The 500-cycle mating rating suits rental and production environments where connectors are repeatedly assembled, inspected, packed, and redeployed. In wet grass, dusty stages, and temporary generator yards, the sealed mated interface is the detail that keeps a power run from becoming the weak point of the show.
How should PFPS-2W-T7 be paired inside a PowerFit 750A layout?
PFPS-2W-T7 should be paired with a compatible PowerFit drain connector, such as the matching line drain or panel drain role for the same conductor assignment. Keep source and drain orientation consistent through the entire system so the power origin, feeder path, and receiving equipment are easy to audit. The key-release feature belongs on the source-side connector, so crews can disconnect intentionally without improvised tools or contact damage.
Where does PFPS-2W-T7 make the most sense in a power distribution build?
PFPS-2W-T7 is best suited to fixed equipment faces such as generator output panels, portable distro boxes, switchgear doors, or custom power racks. It gives the panel builder a repeatable interface for high-current single-pole connections while preserving the same PowerFit phase-color logic used on the cable-mounted line connectors.
