K-LOK 400A Panel Mount Receptacles

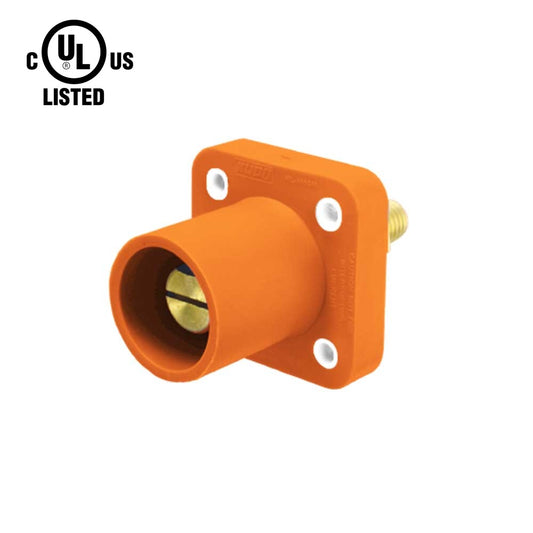

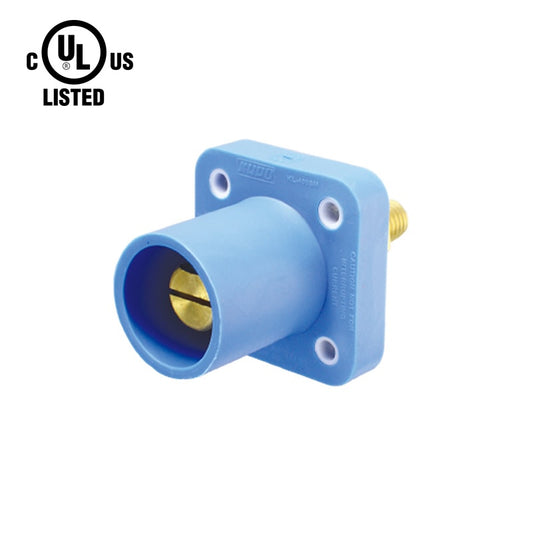

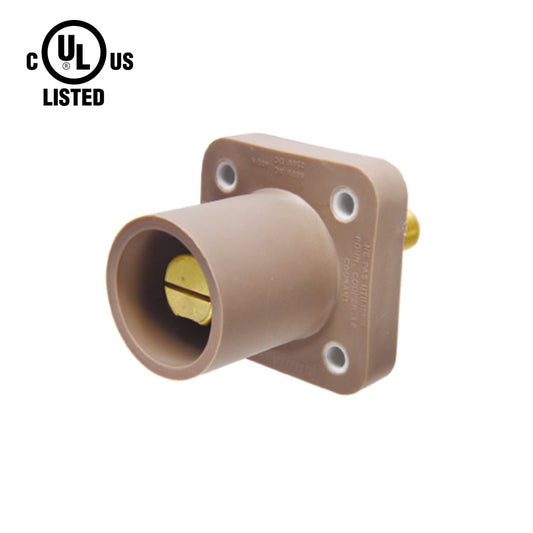

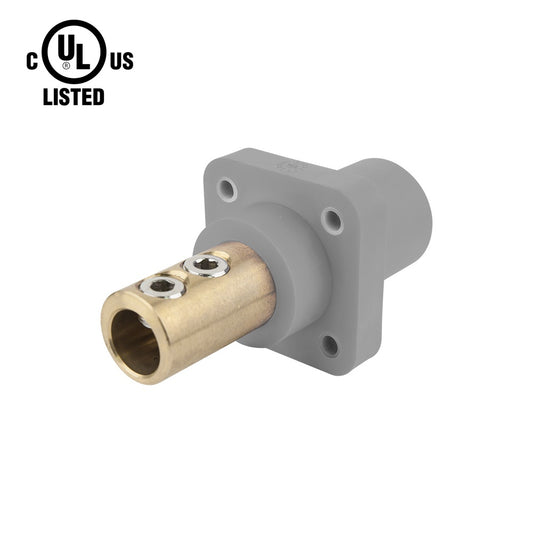

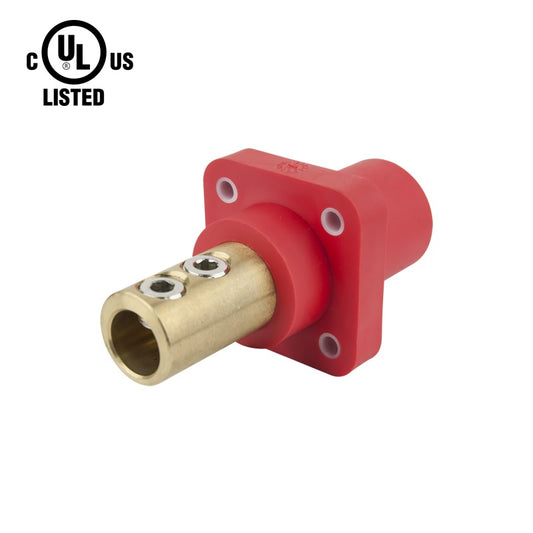

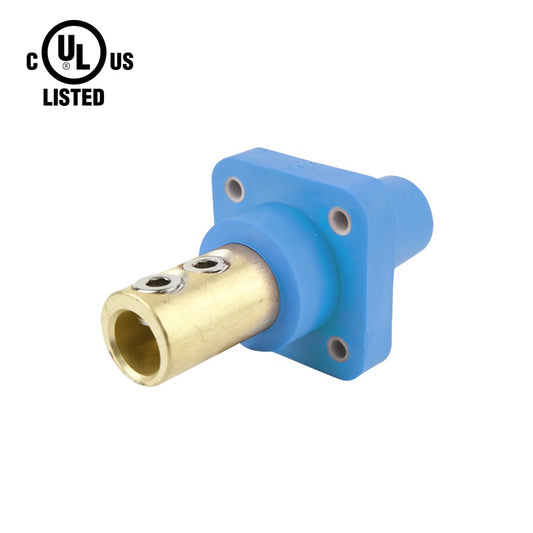

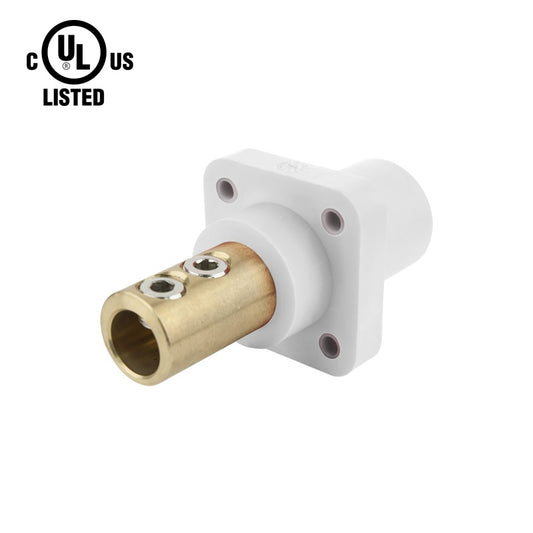

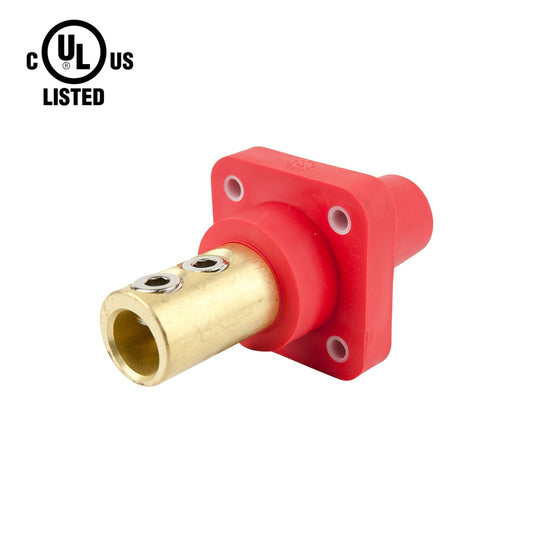

K-LOK 400A panel-mount receptacles are fixed cam-type connectors that mount through the wall of distribution boxes, generators, switchgear, and equipment housings at 400A / 600V. Available in male (inlet) and female (outlet) variants, and in two cable-termination styles depending on installation type: Threaded Stud (bolt-on cable lug) and Double Set Screw (clamp-style termination). UL 1691 / CSA C22.2 No. 1691 listed.

Pick your termination style

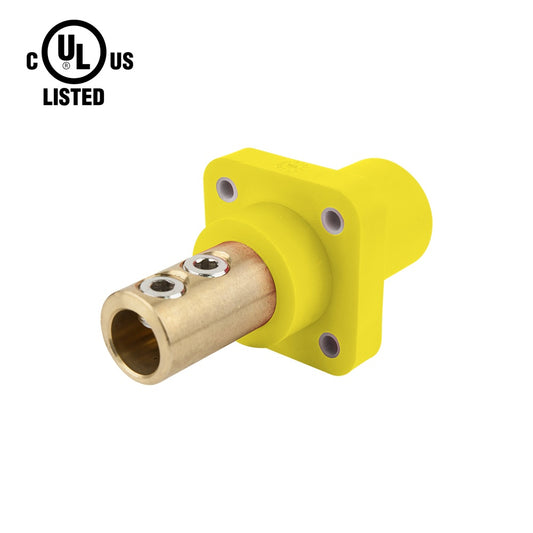

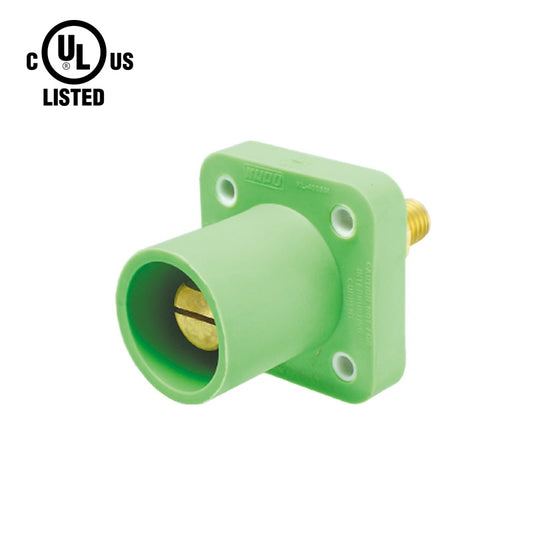

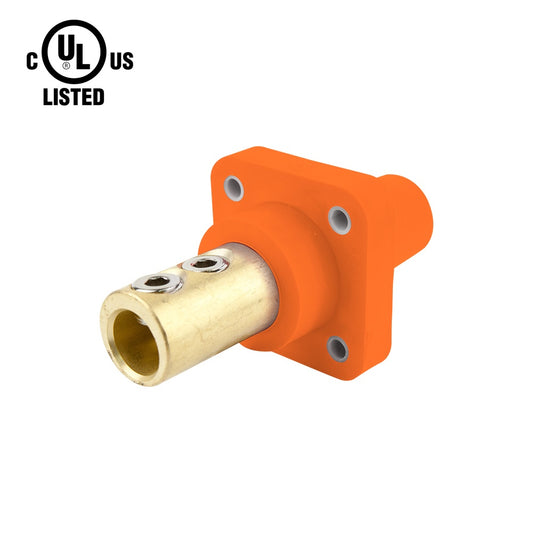

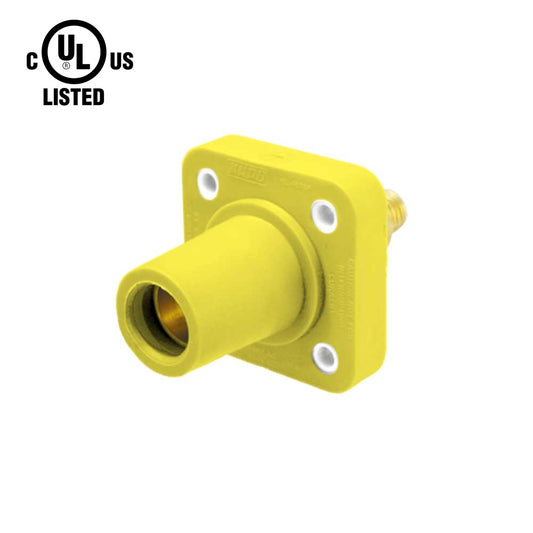

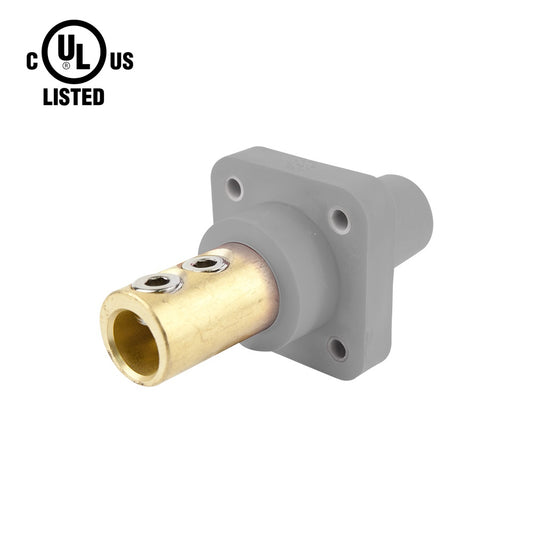

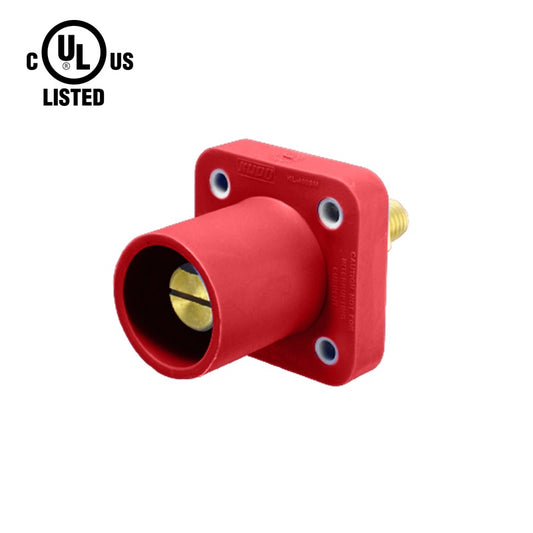

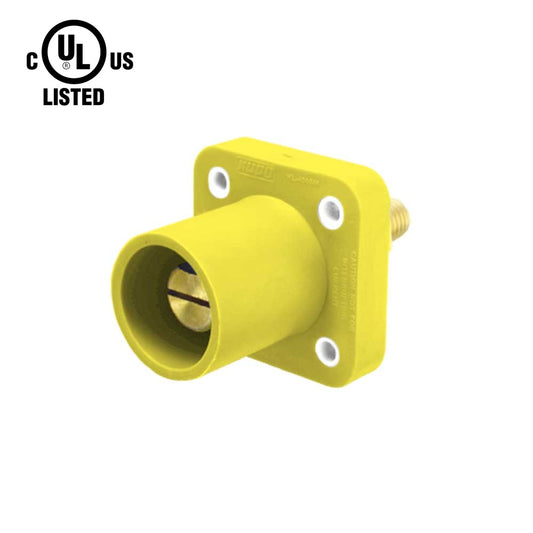

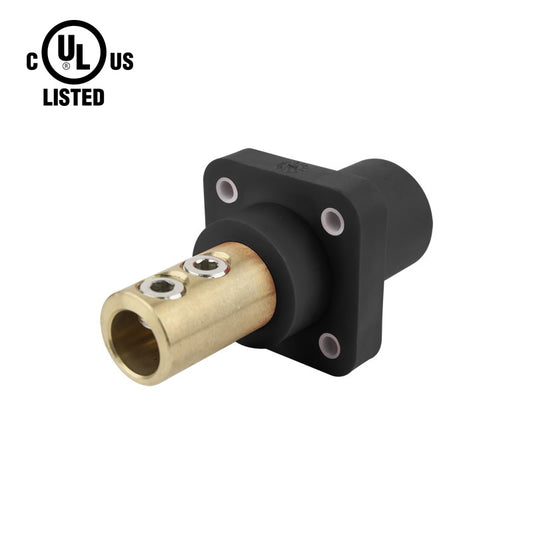

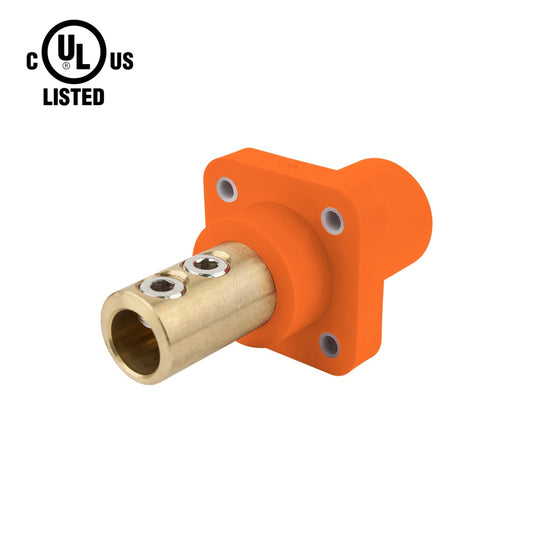

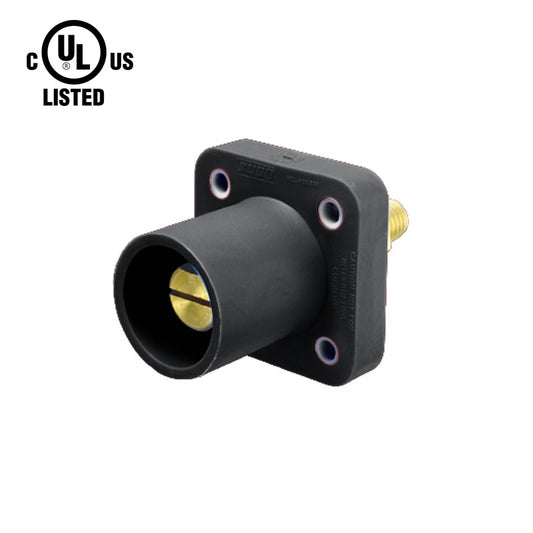

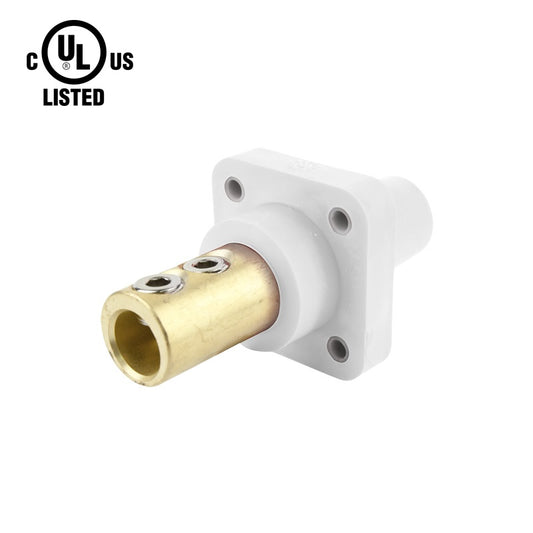

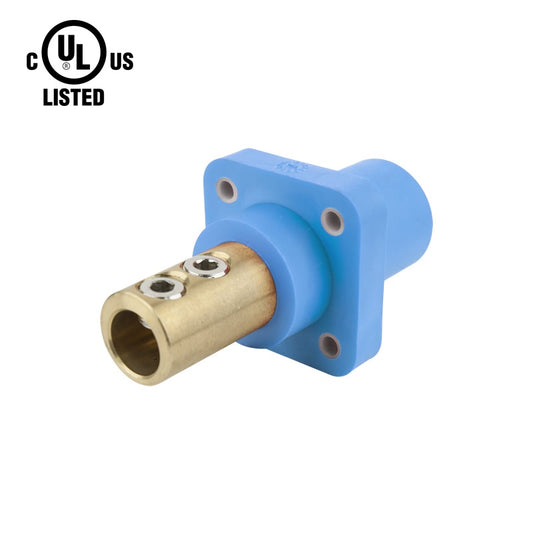

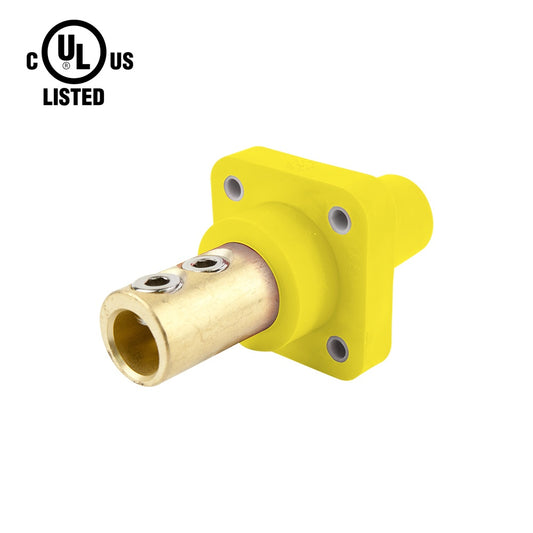

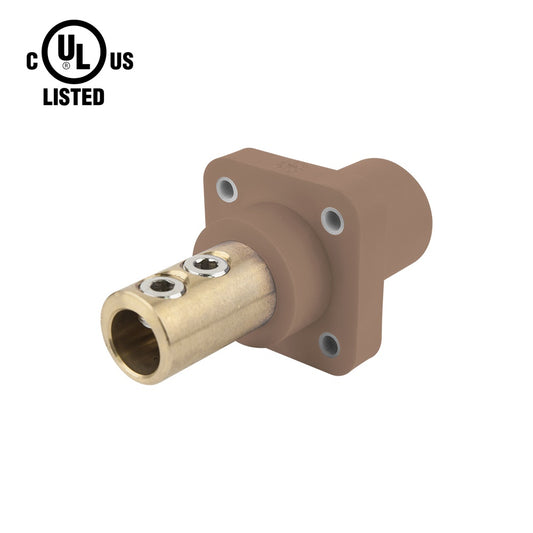

Threaded Stud Double Set Screw
Termination method Bolt-on crimp lug, torqued to spec Clamp-style with two opposing set screws
Cable preparation Crimp lug onto stripped cable Strip cable, insert, torque set screws
Best for Permanent and semi-permanent installations: switchgear, fixed distribution boards, generator output panels Portable distribution: touring road cases, mobile generator panels, frequent reconfiguration
Tools required Crimper, torque wrench Set-screw driver, torque tool

Looking for the cable-end half of the system? Browse K-LOK 400A Line Connectors →
